414A
Heavy Duty Alignment Service Four Post Lift
More versatility with alignment
Optimize your alignment business with PEAK 414A. The 6500KG capacity lift carts to a diverse range of vehicles across various weight classes, from passenger cars and vans to trucks and motor homes, all in one shop.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

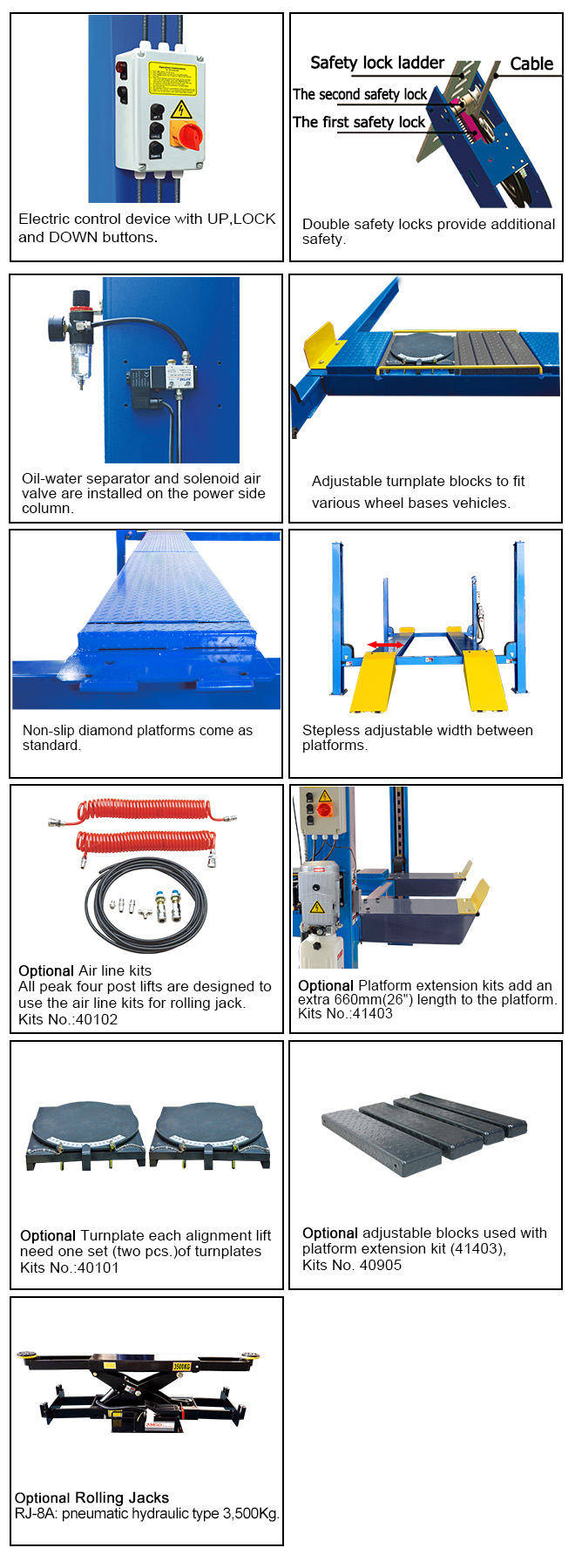

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.
• Optional Jack and Turnplate.

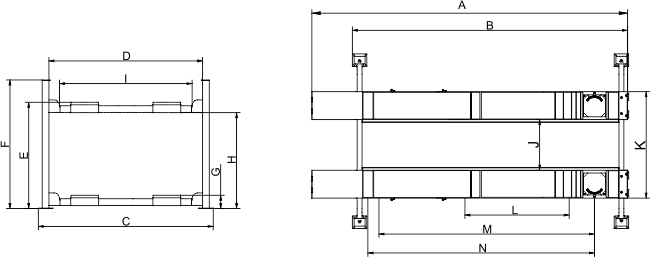

| Model 414A | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 6500kg (14,000lbs) |
| Lifting Time | | 79s |
| Overall Length (Inc Ramps) | A | 6528mm (257") |
| Overall Length (No Ramps) | B | 5500mm (216 1/2") |
| Overall Width | C | 3324mm (130 7/8") |
| Width Between Columns | D | 2946mm (116") |
| Max.Lifting Height | E | 1950mm (76 3/4") |
| Max. Lock Height to top of runway | 1880mm (74") |
| Overall Height | F | 2189mm (86 1/4") |
| Minimum Height | G | 250mm (9 7/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2592mm (102") |
| Width Between Runways | J | 1194mm(47")
Min.85mm（3 3/8")~
Max.1385mm (54 1/2") |
| Outside Edge of Runways | K | 2210mm (87")
Min.1101mm(43 3/8")~
Max.2401mm (94 1/2") |
| Min. Four Wheel Align | L | 2396mm (94 11/32") |
| Max. Four Wheel Align | M | 4310mm (169 11/16") |
| Max. Two Wheel Align | N | 4472mm (176") |

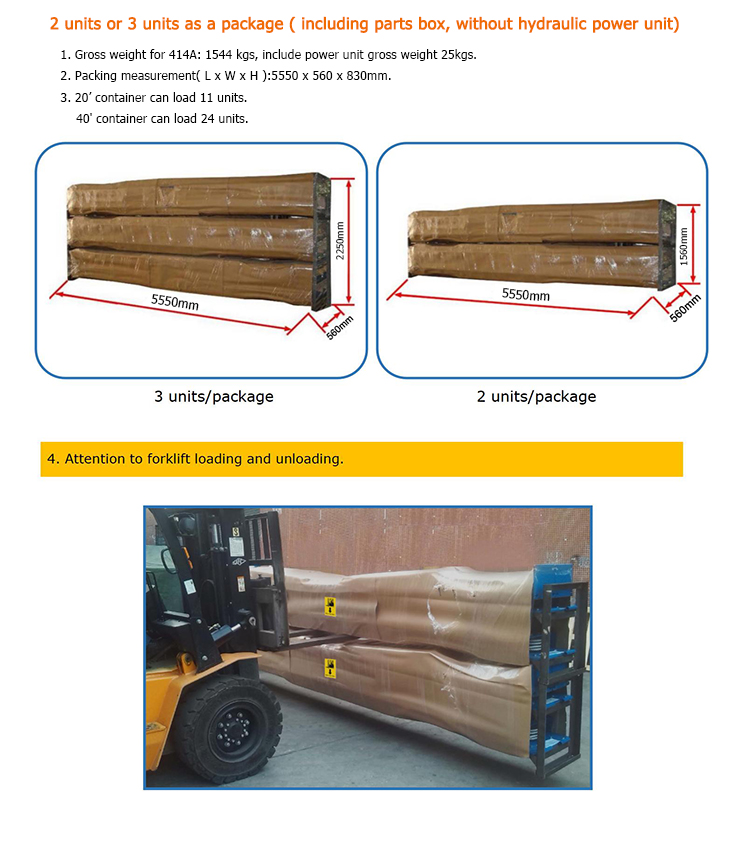

| Gross Weight | | 1544kg (3,404 lbs) |
| Motor | | 3.0 HP |
