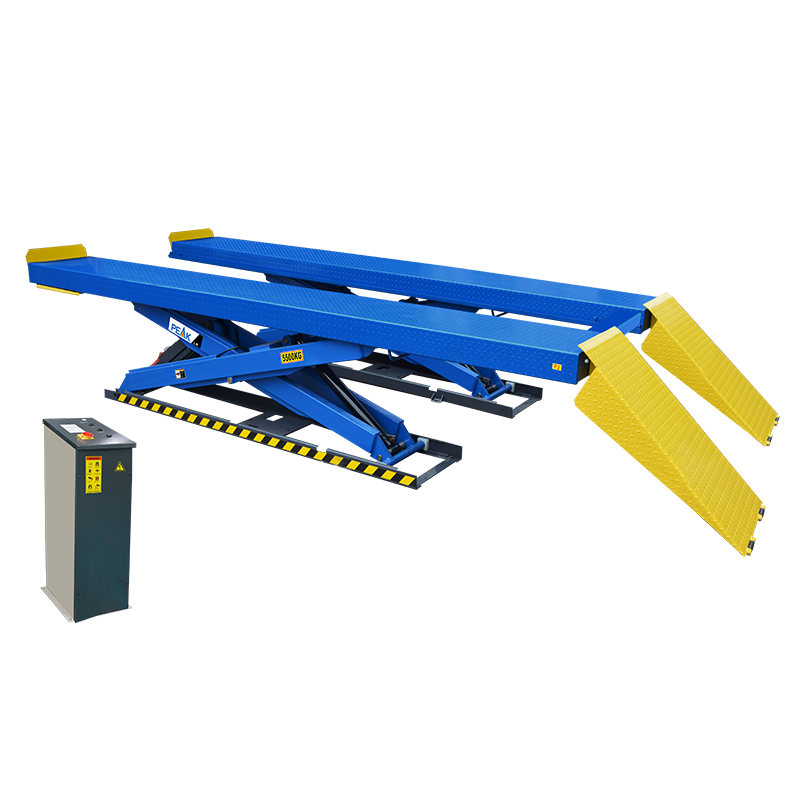

PX12
General Service Scissors Lift
Expert with efficiency
The PX12 utilizes a heavy-duty design with Peak's unique X scissors for ruggedness, providing efficient performance and stability. It incorporates four hydraulic cylinders in two groups for optimal synchronization and has extremely large platforms capable of lifting various vehicles weighing up to 5500KG. It is your go-to expert for daily massive general services.
- Lifting capacity: 5500KG (12000lbs);
- General service model;
- Heavy duty structure with X scissors to enhance the durability ;
- Electrical control operation system, with control cabinet;
- Dual groups of total 4 cylinders assure the platforms synchronization;
- Both hydraulic lock and air-drive self-locking mechanical lock come standard;
- Automatic safety stop device at 600mm from ground when lowering;
- Pull-out tool shelf comes standard;
- Integrated large non-skid diamond platforms;
| Model PX12 | General Service Scissors Lift | |
| Lifting Capacity | 5500kg (12,000lbs) | |
| Lifting Time | 75s | |
| Max. Lifting Height | A1 | 1850mm (72 13/16") |
| Minimum Height | A2 | 305mm (12") |
| Runway Length | B | 5018mm (197 1/2") |
| Overall Width | C | 2290mm (90 1/8") |
| Width Between Runways | D | 1040mm (41") |
| Overall Length (Inc. Ramps) | E | 6784mm (267") |
| Gross Weight | 2337kg (5,152lbs) | |
| Motor | 4.0HP | |
| QTY of Container | 6 Units/20'GP | |
| Packing Dimension | 5160 x 770 x 1045 mm (Lift) | |
| Packing Dimension | 478 x 428 x 1235 mm (Control Cabinet) |
-
Electro-air control system,mechanical safety locks.
-
Extremely long and wide non-skid diamond platforms are capable of servicing varuing wheelbase vehicles.
-

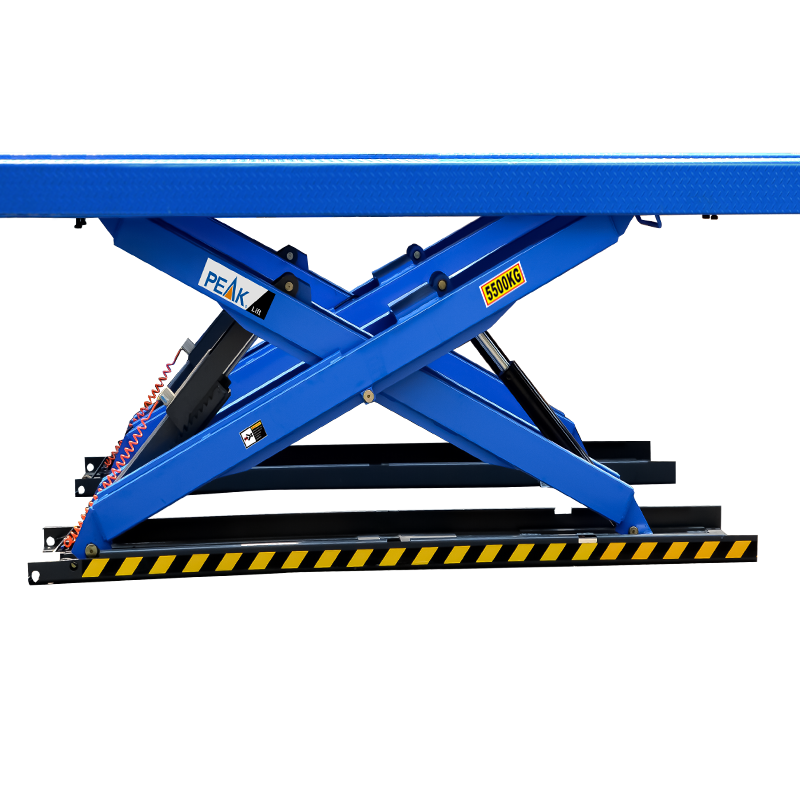

Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
-

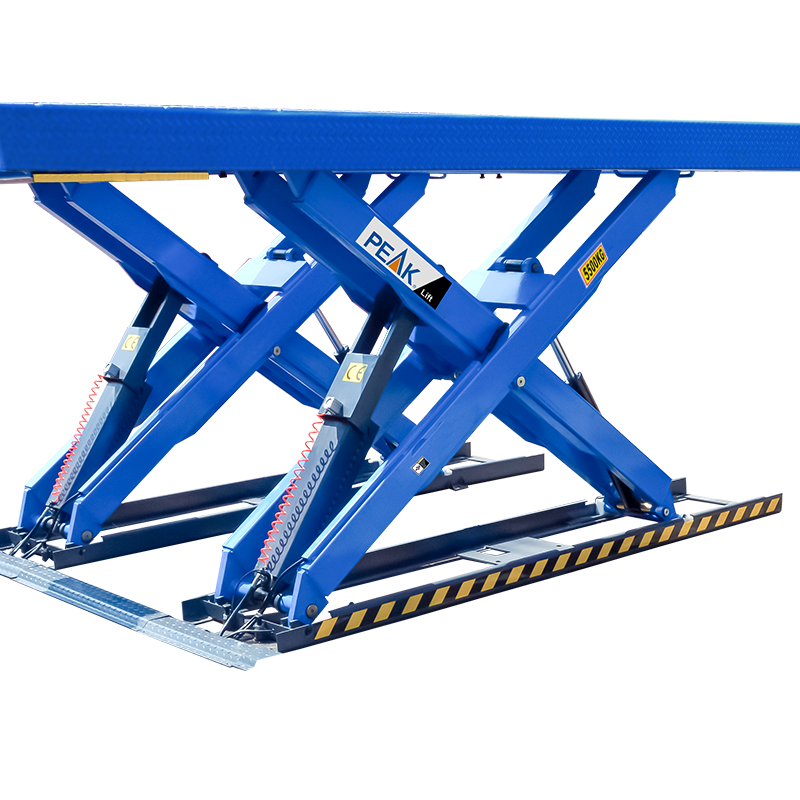

Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.
-

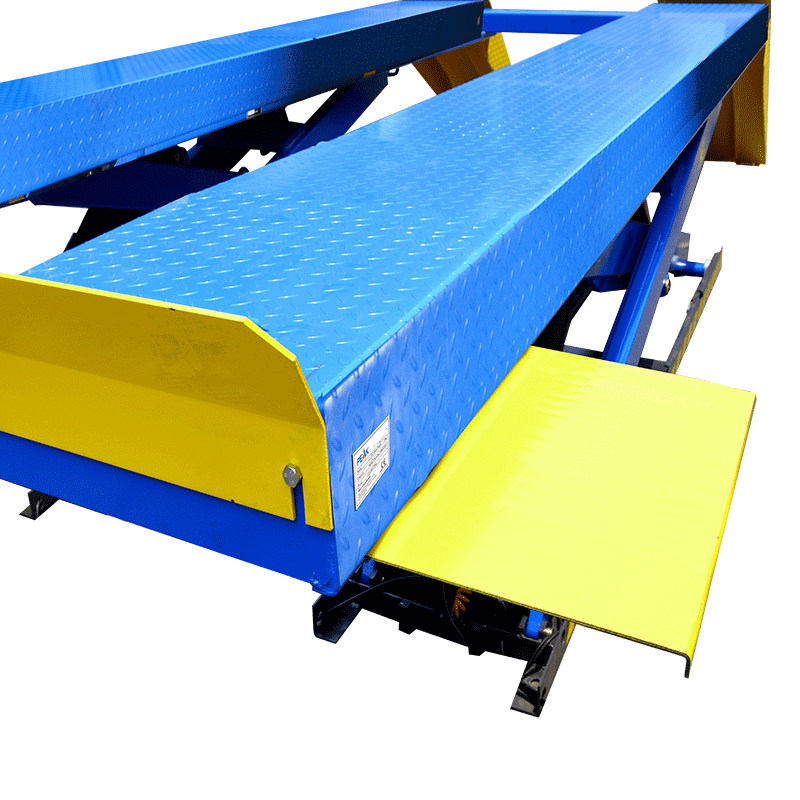

Nice design pull-out tool tray comes as standard.
-
Optional extension platform,
Kits No.: PX001 -

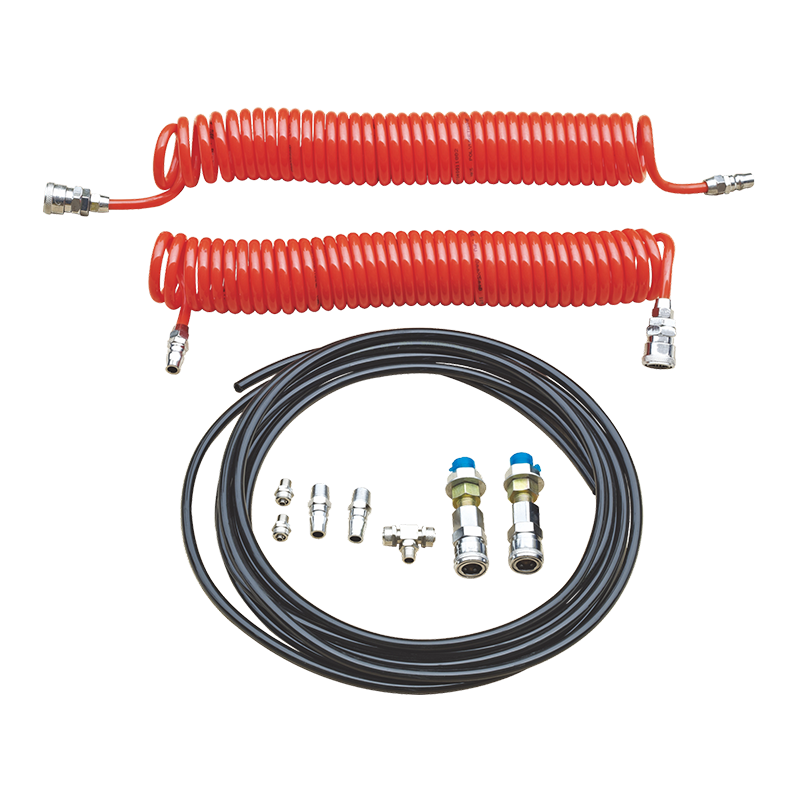

Optional air line kits (kits no.: PX004)
-

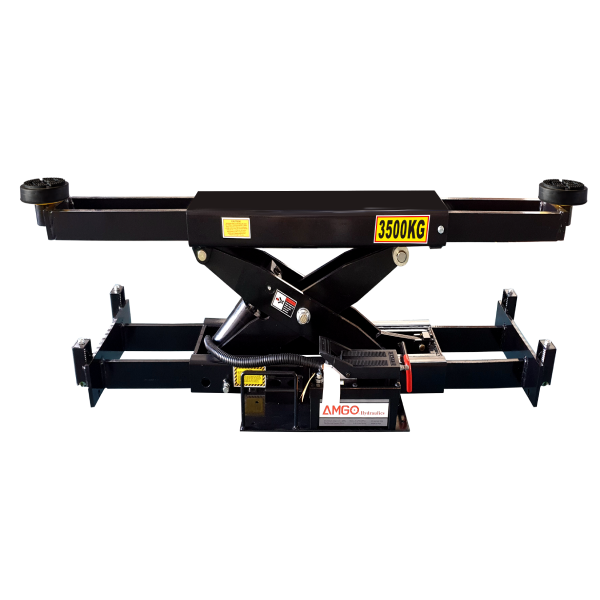

Optional rolling jacks
J6H: manual hydraulic type 2.8T
J6A: pneumatic hydraulic type 2.8T
RJ-8A: pneumatic hydraulic type 3.5T
2 units as a package ( including parts box,without control cabinet)
- Gross weight for PX12: 2337kgs , include control cabinet gross weight 90kgs.
- 20' container can load 6 units.
- 40' container can load 12 units.
-

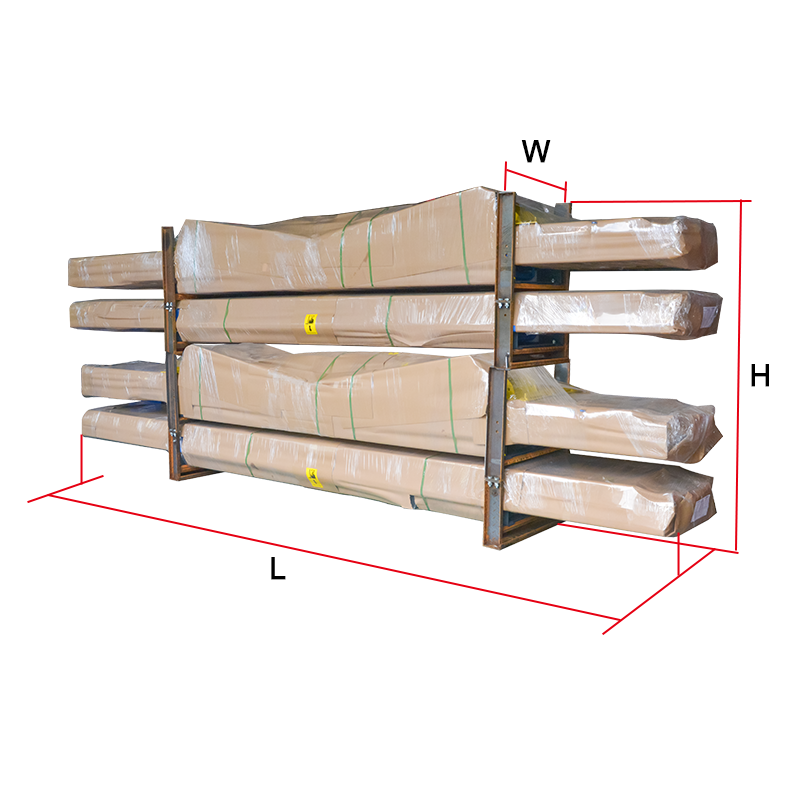

2 units/package,packing measurement (LxWxH):5160x770x2090mm
-

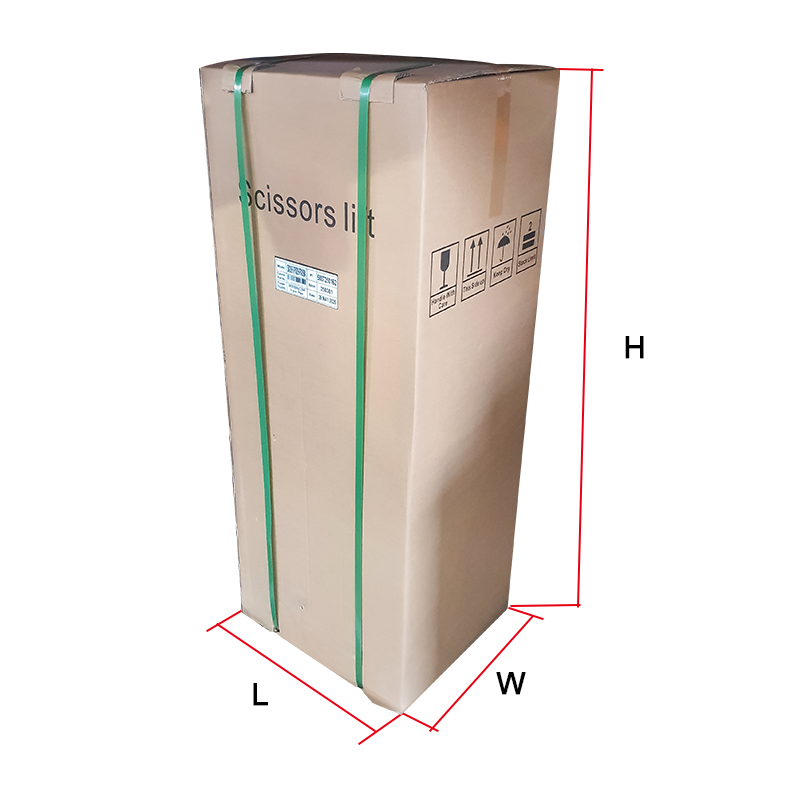

1 unit/ctn, control cabinet packing measurement (LxWxH): 478x428x1250mm
-

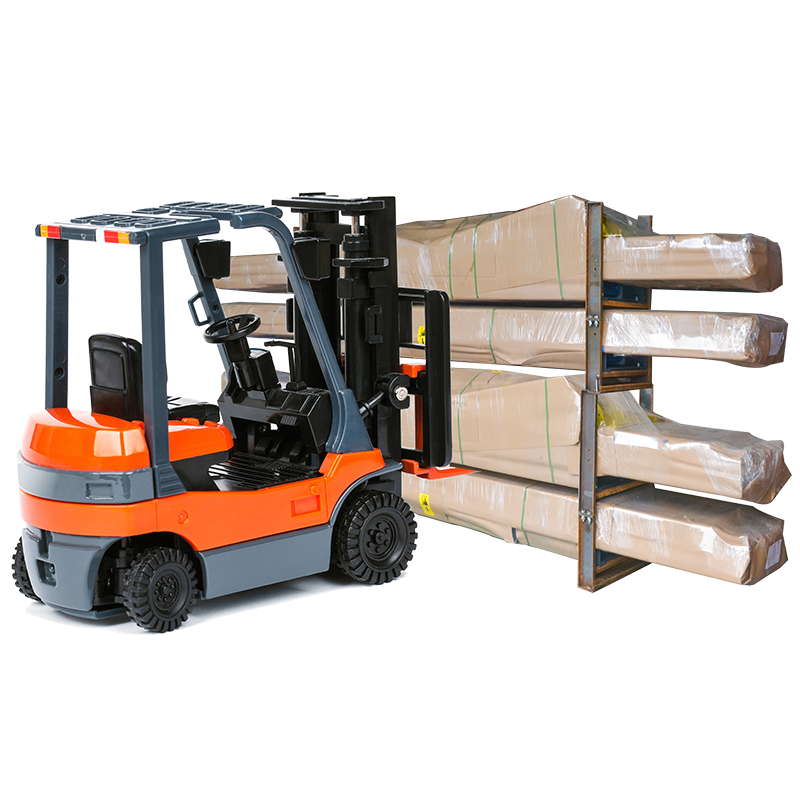

Attention to forklift loading and unloading.
