215C
CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT
Borned for higher and heavier. The new 215C is ideal design to raise heavy duty vehicles, from van to heavy duty truck at easiness. It's also introduced with the Peak 3in1 intergrated technology to provide 3 extremely heights setting with 1 set cables only.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• Heavy duty design, 6800kg (15,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• 4 two-stage rugged arms are allow to load more heavy-duty vehicles;
• Overhead safety shut-off device prevents vehicle damage;
• The width between columns is extremely wide over 3100mm ;
• Extremely high design, comes standard with 3 adjustable heights settings;
• 3in1 aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
• Saddle adapters also come as standard.
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

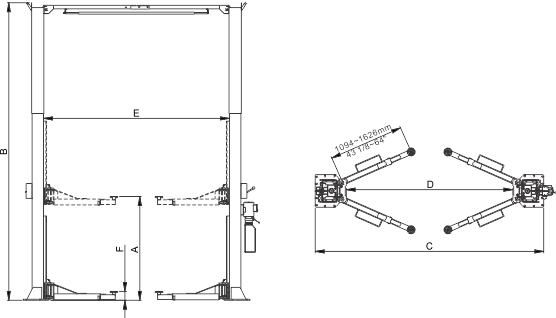

| Model 215C | | Clearfloor Direct-drived |
| Lifting Capacity | | 6800kg (15,000 lbs) |
| Lifting Time | | 84s |
| Max. Lifting height: (w/o extension adapter) | A | 1902mm (74 7/8")~1936mm(76 1/4") |
| Max. Lifting height: (w/ extension adapter) | 2131mm (83 7/8")~2165mm(85 1/4") |
| Max. lock height: (w/o extension adapter) | 1852mm (72 7/8")~1886mm(74 1/4") |
| Max. lock height: (w/ extension adapter) | 2081mm (81 7/8")~2115mm(83 1/4") |
| Overall Height:(low setting) | B | 4420mm(174") |
| Overall Height:(Medium setting) | 4725mm (186") |
| Overall Height:(High setting) | 5030mm (198") |
| Overall Width | C | 3829mm (150 3/4") |
| Drive-Thru Clearance | D | 2787mm (109 3/4") |
| Width Between Columns | E | 3137mm (123 1/2") |
| Minimum Pad Height | F | 175mm (6 7/8") |
| Gross Weight | | 1086kg (2,394 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 14 Units/20'GP |
| Packing Dimension | | 2950 X 540 X 1065 mm |
