209CH
Clear Floor two post lift
Higher, more flexible
209CH is the ideal solution to lift up taller vehicles. It provides two height settings at extremely higher and also can be wider with optional width extension kit.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg (9,000lbs) capacity.
• Dual hydraulic direct-drived cylinders made on high standard.
• 4 three-stages arms are suitable for more vehicles.
• Aero cable used for synchronization.
• Single-point safety release, allow technican to disengage both column simultaneously.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Clear-floor design, provide unobstructed floor use.
• Overhead safety shut-off device prevents vehicle damage.
• Stackable rubber pads and 1.5'',2.5'',5''adapters as standard supply.
• Standard adjustable heights accommodates varying ceiling heights.
• Standard door guards.
• Standard toe guards on lifting arms.

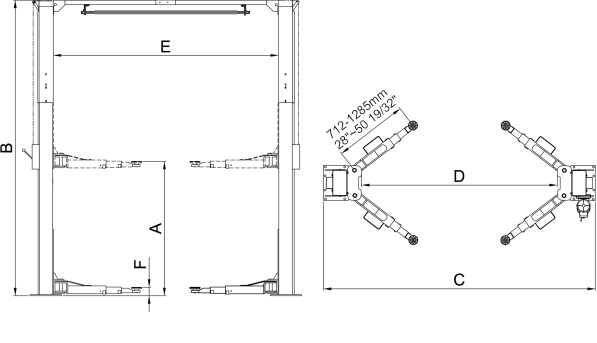

| Model 209CH | | Clear Floor two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1815mm (71 1/2" ) |
| Max. Lifting height: (w/ extension adapter) | | 2044mm (80 1/2" ) |
| Max. lock height: (w/o extension adapter) | | 1768mm (69 5/8" ) |
| Max. lock height: (w/ extension adapter) | | 1997mm (78 5/8" ) |
| Overall Height | B | 4245mm (167 1/8") |
| | | 4445mm（175"） |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 7/32") |
| Minimum Pad Height | F | 90mm (3 9/16") |
| Gross Weight | | 722kg (1,369 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 21 Units/20'GP 42 Units/40'GP |
| Packing Dimension | | 2800 X 450 X 860 mm |
