Clear Floor two post lift
The time-proven best
PEAK 210C is widely regarded as one of the top-tier commercial-grade lifts, and it continues to improve with time. It embodies PEAK's standard of world-class car lift. Features with extremely long carriages, 4 three-stage arms, manual single-point lock release mechanism, aero cables etc., 210C offers powerful perfomance to support your daily busy business. Whether commercial shop owner or a home garage enthusiast, PEAK 210C is the best two-post lift for you.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

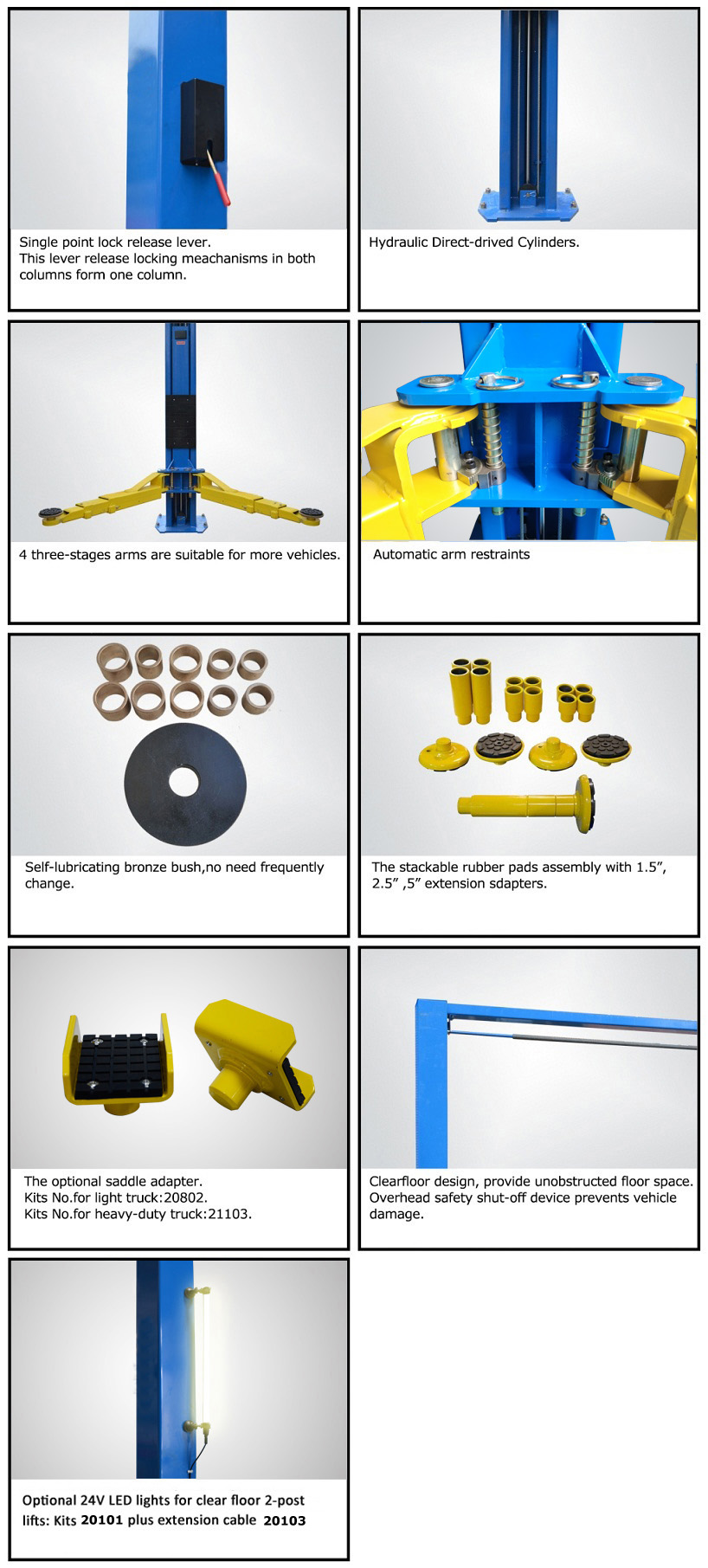

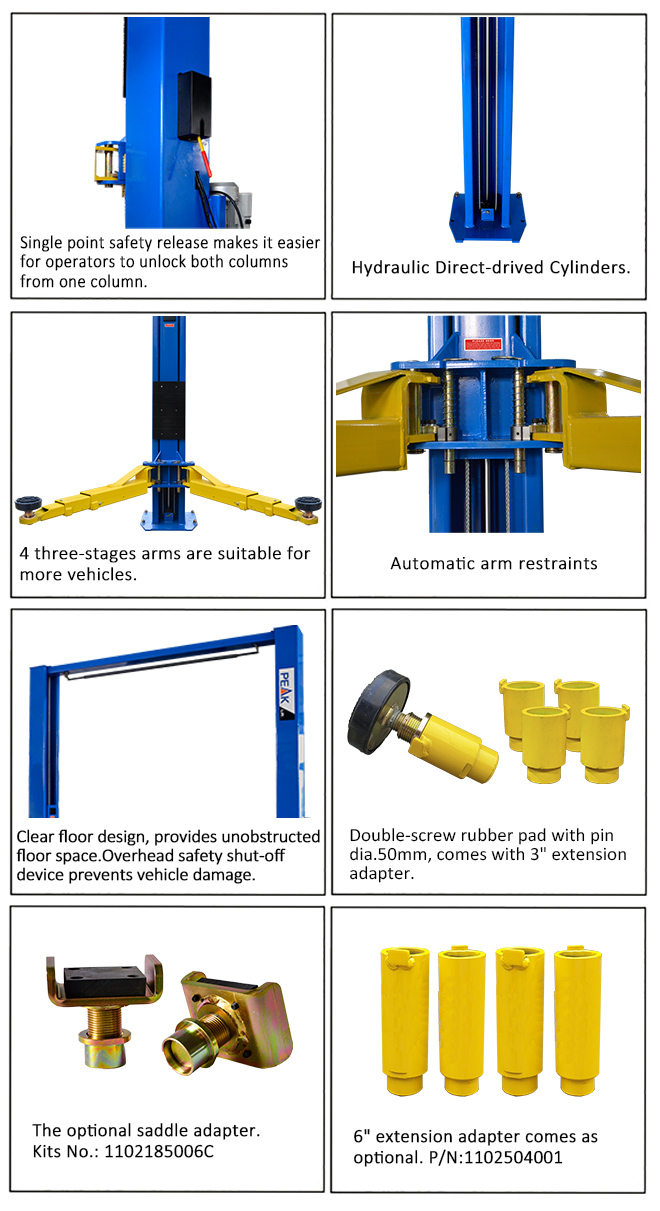

• 4500kg (10,000 lbs) Capacity.
• Dual hydraulic cylinders,designed and made on high standard,high quality oil seals.
• Aero cable used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shut-off device.
• 4 three-stages arms are suitable for more vehicles.
• Automatic arms restraints.
• Stackable adapters 1.5”, 2.5”, 5” as standard.

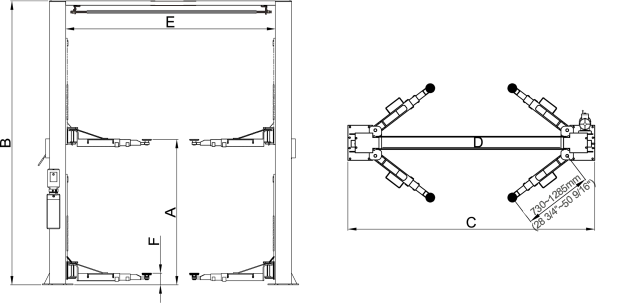

| Model 210C | | Clear Floor two post lift |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 61s |
| Max. Lifting height: (w/o extension adapter) | A | 1890mm (74 13/32" ) |
| Max. Lifting height: (w/ extension adapter) | 2119mm (83 13/32" ) |
| Max. lock height: (w/o extension adapter) | 1840mm (72 7/16" ) |
| Max. lock height: (w/ extension adapter) | 2069mm (81 7/16" ) |
| Overall Height | B | 3854mm (151 3/4") |
| Overall Width | C | 3516mm (138 7/16") |
| Drive-Thru Clearance | D | 2560mm (100 25/32") |
| Width Between Columns | E | 2850mm (112 7/32") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 761kg (1,678 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 12 Units/20'GP 30 Units/40'GP |
| Packing Dimension | | 3920 X 510 X 820 mm |
