HEAVY DUTY BASE PLATE TWO-POST LIFT
Reaches farther, lifts for more.
The base plate heavy-duty lift model is designed with 4 extremely long three-stage arms and adjustable width that make it possible to service various vehicles include car, commercial van and truck.The base plate design is ideal choice for low ceiling garage and freedom of lifting high vehicles.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

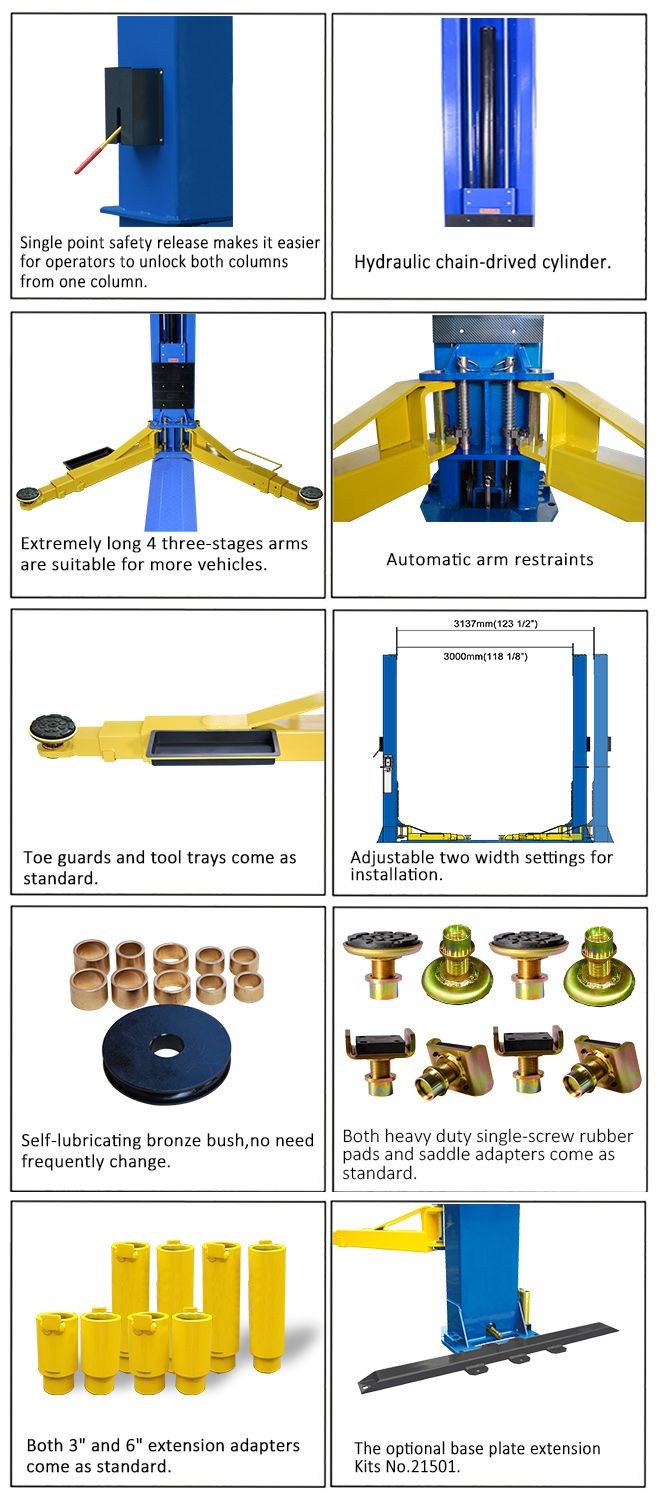

• Heavy duty design, 5500kg (12,000 lbs) capacity;
• Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Extremely long four 3-stage arms, compatible with a variety of vehicles, from cars and Vans to trucks.
• Comes standard with 2 adjustable width settings.
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
• Saddle adapters also come as standard.
• Automatic arms restraints;
• Toe guards and tool trays come as standard.
| Model 212 | | Base Plate Chain-drived |
| Lifting Capacity | | 5500kg (12,000 lbs) |
| Lifting Time | | 65s |
| Max. Lifting height: (w/o extension adapter) | A | 1835mm (72 1/4")~1869mm(73 5/8") |
| Max. Lifting height: (w/ extension adapter) | 2064mm (81 1/4")~2098mm(82 5/8") |
| Max. lock height: (w/o extension adapter) | 1795mm (70 1/4")~1819mm(71 5/8") |
| Max. lock height: (w/ extension adapter) | 2014mm (79 1/4")~2048mm(80 5/8") |
| Overall Height | B | 3110mm (122 1/2") |
| Overall Width | C | 3692mm(145 3/8")
3829mm(150 3/4") |
| Drive-Thru Clearance | D | 2653mm(104 1/2")
2790mm(110") |
| Width Between Columns | E | 3000mm(118 1/8")
3137mm(123 1/2") |
| Minimum Pad Height | F | 108mm (4 1/4") |
| Gross Weight | | 984kg (2,169 lbs) |
| Motor | | 3.0HP |

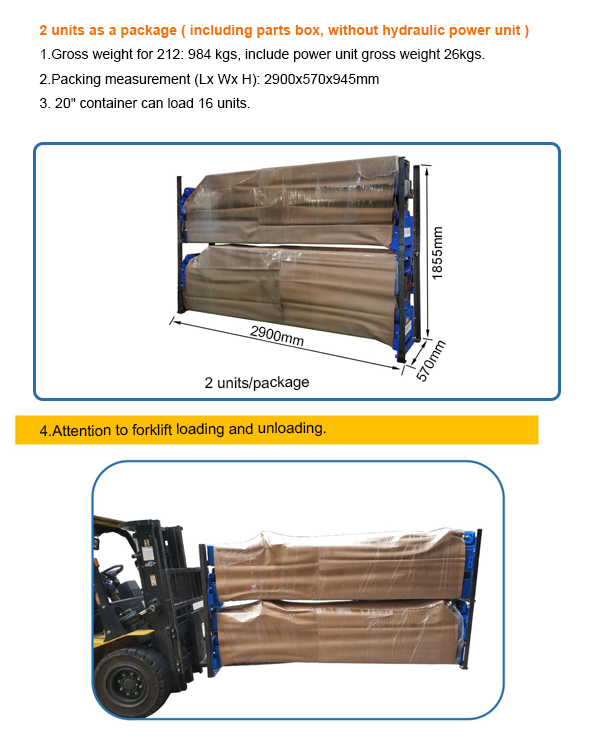

| QTY of Container | | 16 Units/20'GP |
