208C
Clear Floor two post lift
Starts your success
A reliable lift, manufactured under PEAK's princinple of world class car lifts, is the key to starting your success. It can easily handle your busy daily service for most vehicle in the market with simple opeation, strong safety design and durability in use. It's equipped with 4 three-stage arms and Single-point lock release mechanism.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg (9,000 lbs) Capacity.
• Dual hydraulic cylinders, designed and made on high standard, high quality seals.
• 4 three-stage arms are suitable for more vehicles.
• Aero cable used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
• Automatic arms restraints.
• Hydraulic power unit.

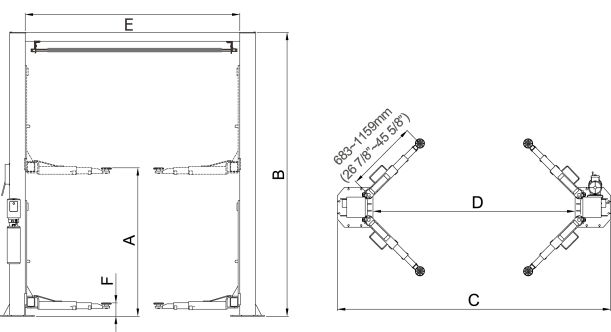

| Model 208C | | Clear Floor two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 37s |
| Max. Lifting height: (w/o extension adapter) | A | 1830mm (72" ) |
| Max. Lifting height: (w/ extension adapter) | 1932mm (76" ) |
| Max. lock height: (w/o extension adapter) | 1784mm (70 1/4" ) |
| Max. lock height: (w/ extension adapter) | 1886mm (74 1/4" ) |
| Overall Height | B | 3602mm (141 13/16") |
| Overall Width | C | 3390mm (133 1/2") |
| Drive-Thru Clearance | D | 2554mm (100 9/16") |
| Width Between Columns | E | 2780mm (109 7/16") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 621kg (1,369 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 15 Units/20'GP 40 Units/40'GP |
| Packing Dimension | | 3660 X 450 X 750 mm |
