209C
Clear Floor two post lift
Advanced & Flexible
With a 4000KG capacity, the advanced 209C offers great flexibility to meet a variety of needs. It comes with two standard height settings for different ceiling heights, and can also be extended in more width or height with additional optional kits. It's equiped with 4 three-stage arms and single-point manual lock release, enabling convenient operation for servicing a range of vehicles.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

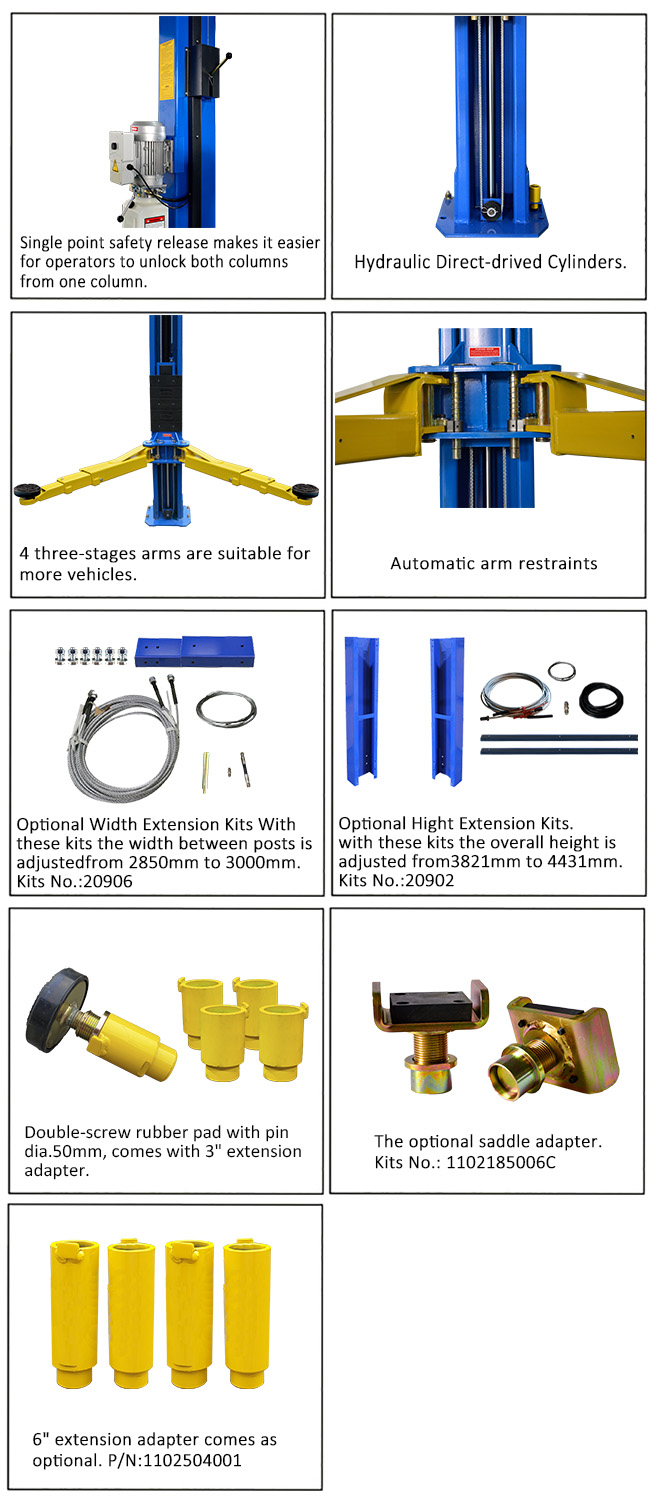

• 4000kg (9,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Overhead safety shut-off device prevents vehicle damage;
• Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

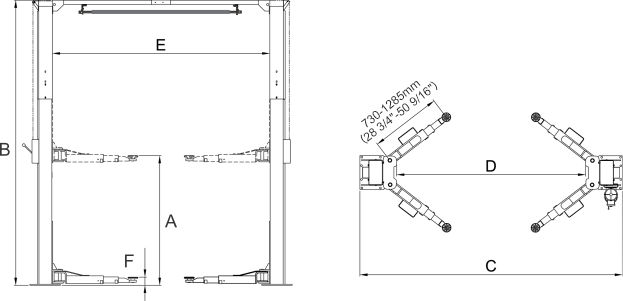

| Model 209C | | Clear Floor two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1821mm (71 11/16" )~1869mm(73 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1897mm (74 11/16")~1945mm(76 9/16") |
| Max. lock height: (w/o extension adapter) | 1774mm (69 13/16" )~1822mm(71 3/4") |
| Max. lock height: (w/ extension adapter) | 1850mm (72 13/16" )~1898mm(74 3/4") |
| Overall Height | B | 3635mm (143 1/8") |
| 3835mm（151"） |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 3/16") |
| Minimum Pad Height | F | 95mm (3 3/4") |
| Gross Weight | | 695kg (1,369 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 25 Units/20'GP
50 Units/40'GP |

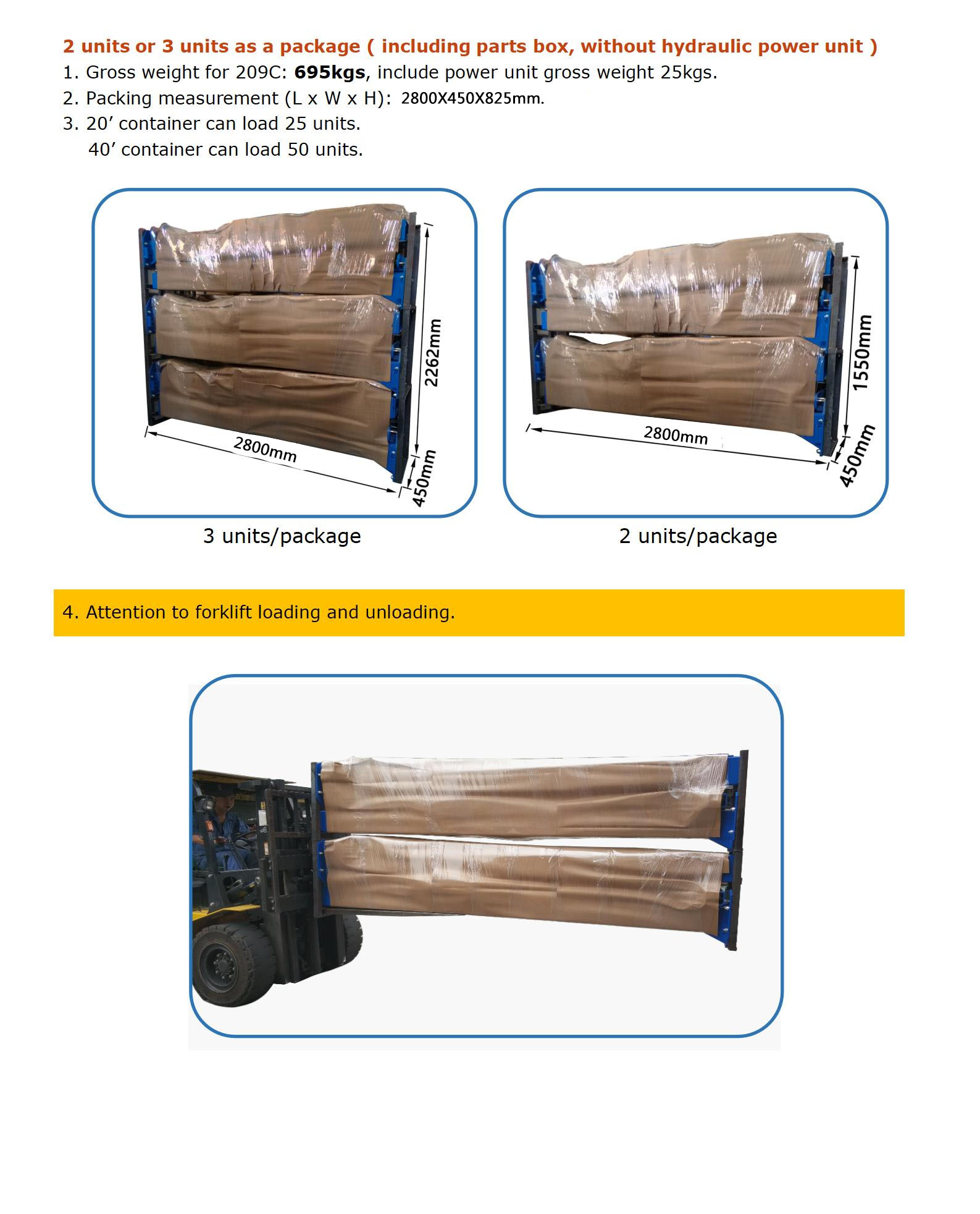

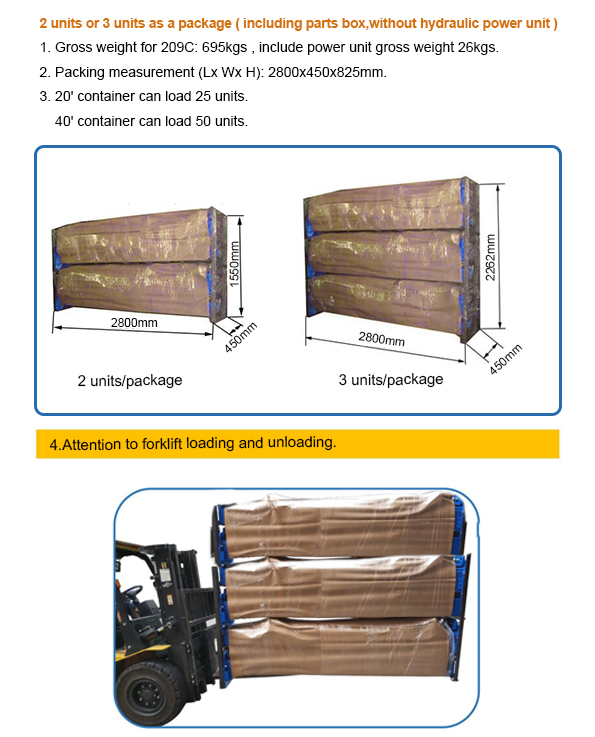

| Packing Dimension | | 2800 X 450 X 825 mm |
