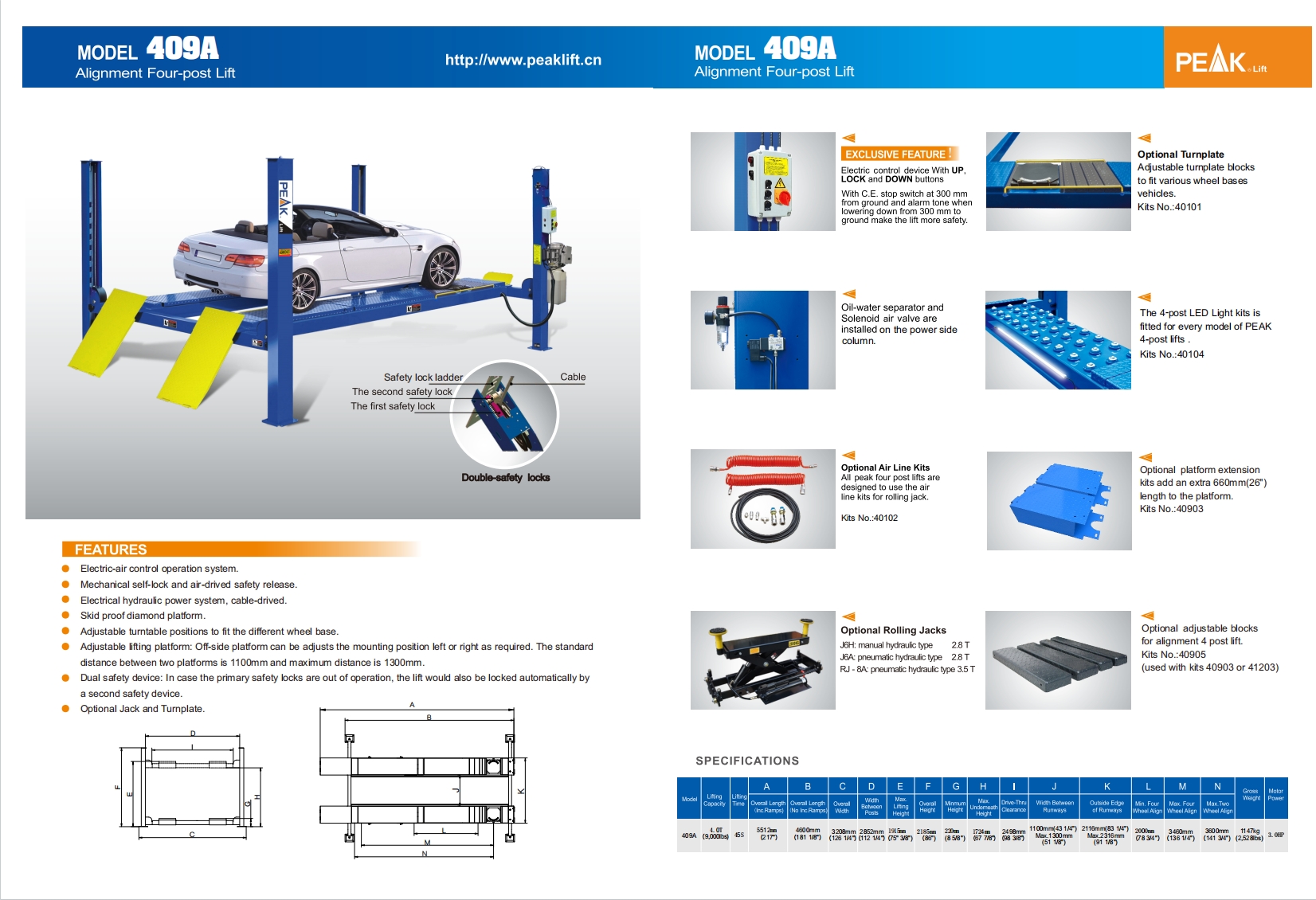

409A
ALIGNMENT FOUR-POST LIFT
Ultimate versatility
Features all advantages of Peak 409, the 409A is beyond to raise also your alignment business. It's full of power and reliability to expand coverage from cars, light trucks and motor homes.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

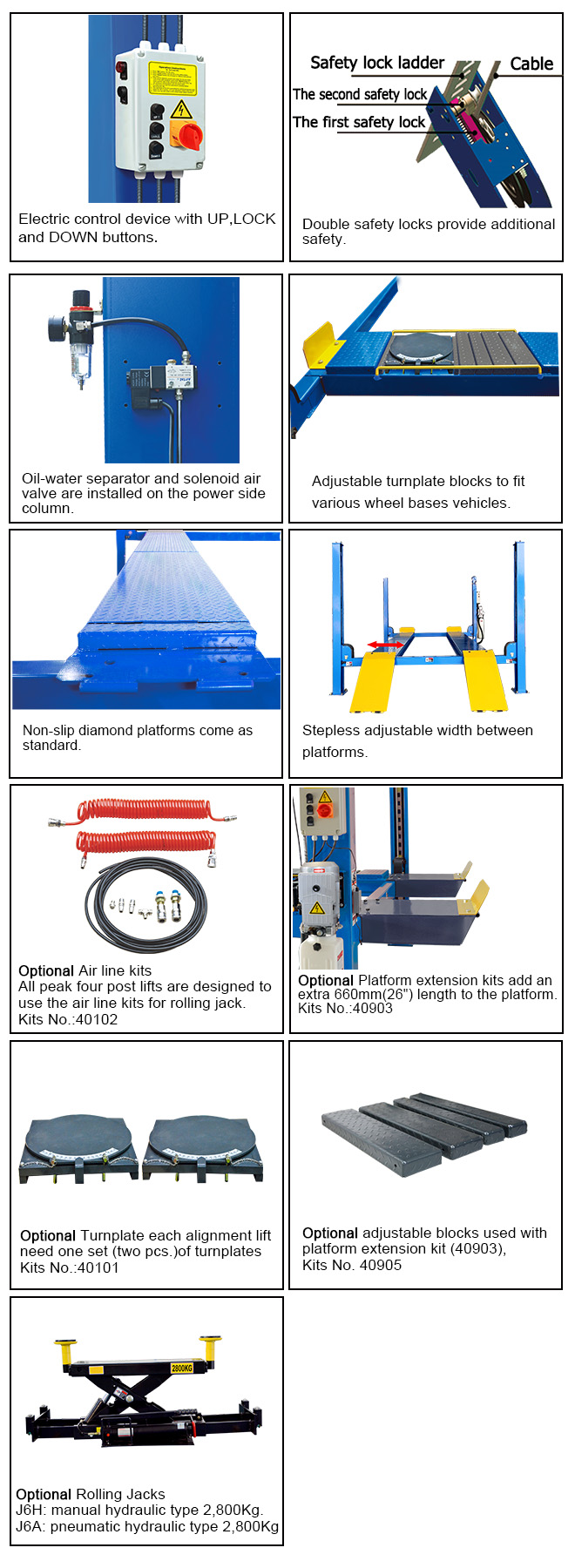

• Lifting capacity: 4000KG, CE certified.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.

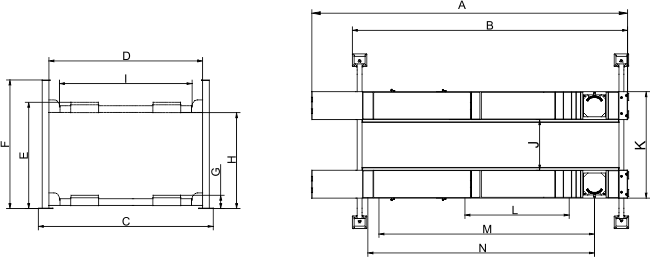

| Model 409A | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 4000kg (9,000lbs) |
| Lifting Time | | 45s |
| Overall Length (Inc Ramps) | A | 5512mm (217") |
| Overall Length (No Ramps) | B | 4600mm (181 1/8") |
| Overall Width | C | 3208mm (126 1/4") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max.Lifting Height | E | 1920mm (75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") |
| Overall Height | F | 2185mm (86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J | 1100mm(431/4")
Min.85mm(3 3/8")~
Max.1300mm (51 1/8") |
| Outside Edge of Runways | K | 2116mm (83 1/4") Min.1101mm(43 3/8")~ Max.2316mm (91 1/8") |
| Min. Four Wheel Align | L | 2000mm (78 3/4") |
| Max. Four Wheel Align | M | 3460mm (136 3/4") |
| Max. Two Wheel Align | N | 3600mm (141 3/4") |

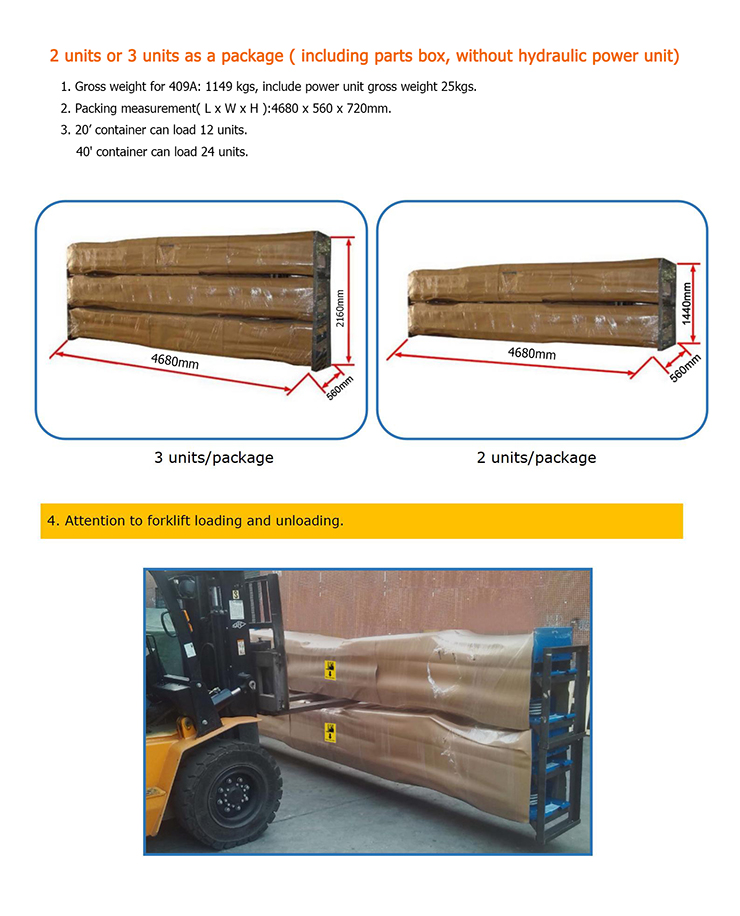

| Gross Weight | | 1149kg (2,533 lbs) |
| Motor | | 3.0 HP |
