210CX
Clear Floor two post lift
Wider, more clearance
The 210CX boasts a width that is 150mm greater than the PEAK 210C, resulting in a generous 2720mm drive-through clearance suitable for the loading of large vehicles. This makes it the optimal selection for commercial shops.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

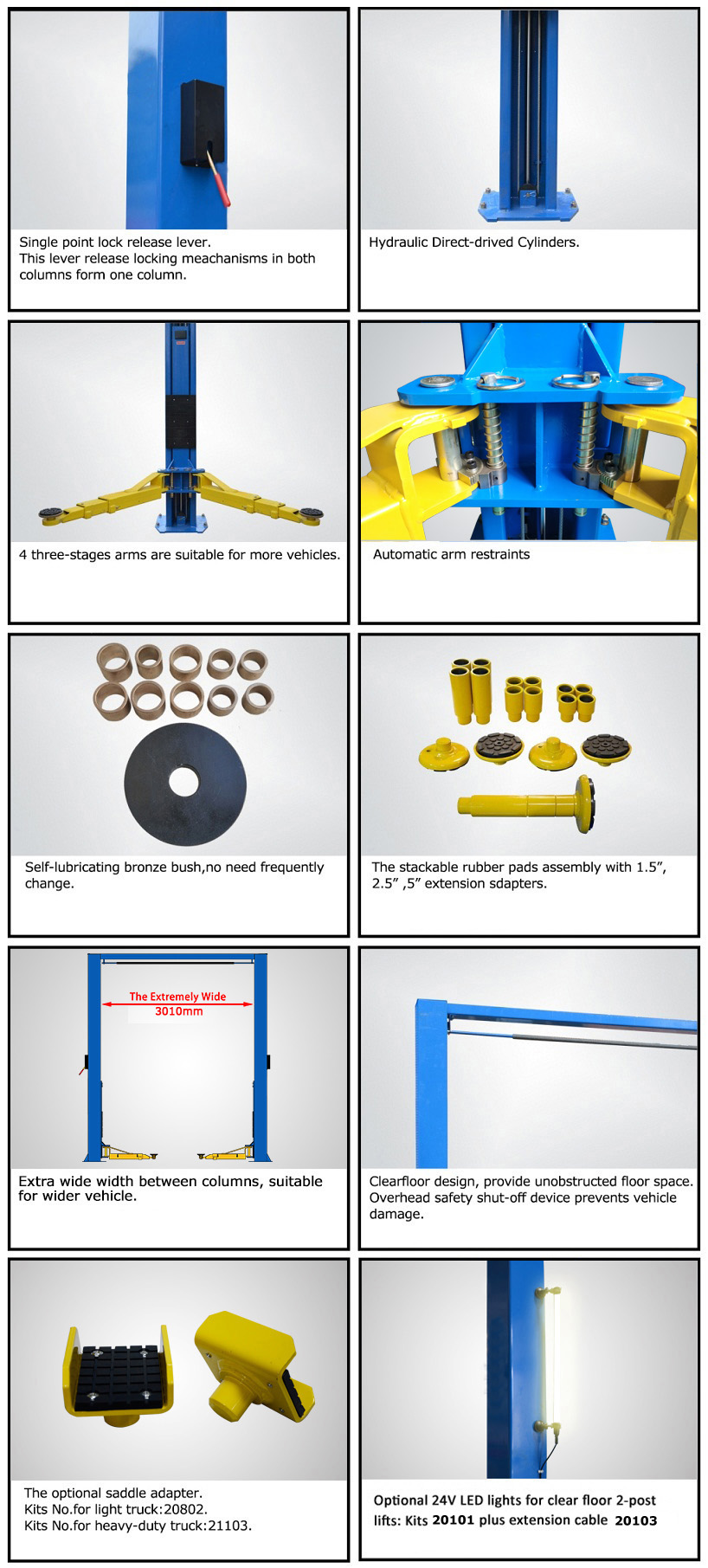

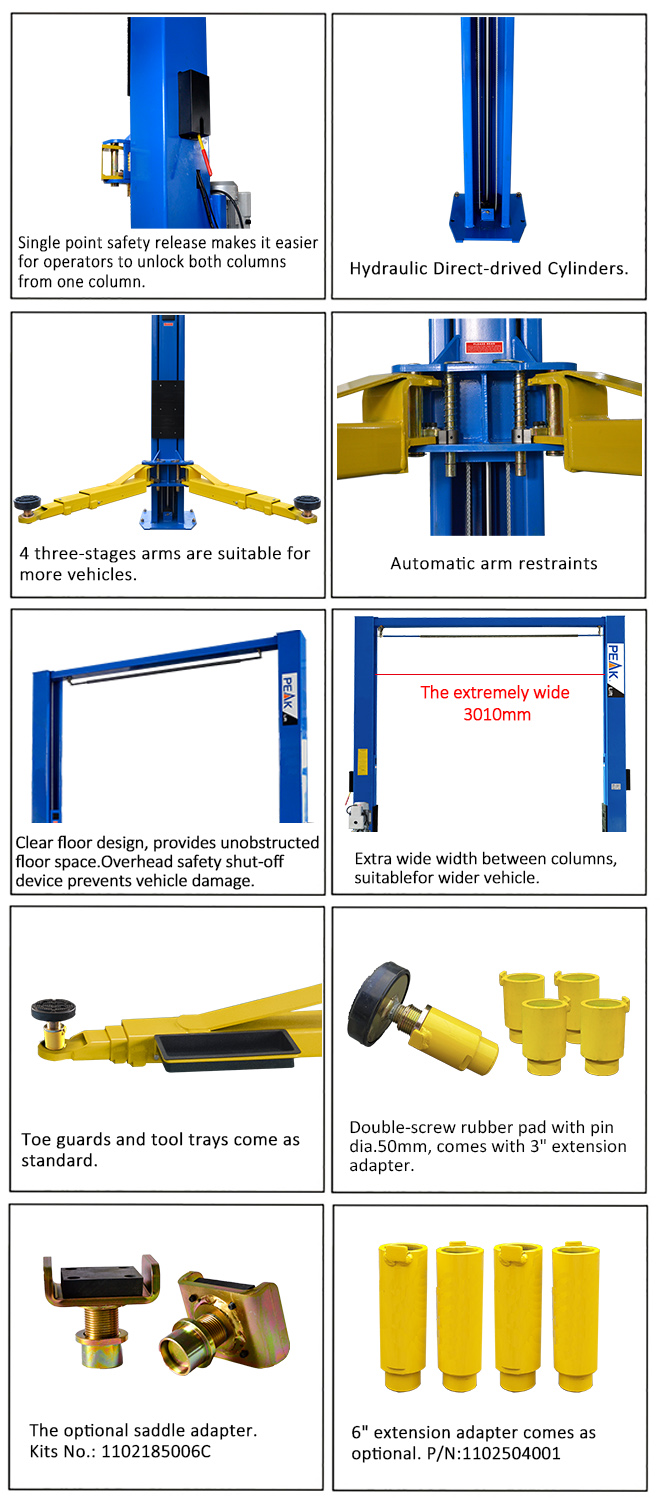

• 4500kg (10,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Overhead safety shut-off device prevents vehicle damage;
• Extremely long carriages are equipped to enhance the stability and durability;
• The width between columns is extremely wide at 3000mm ;
• Aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

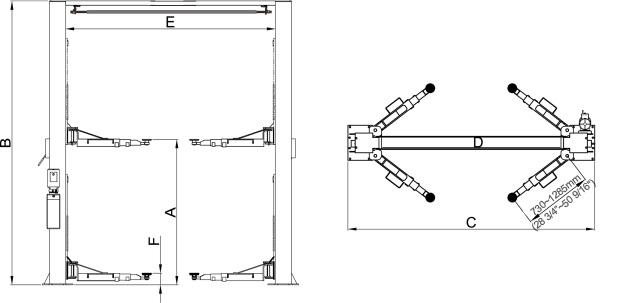

| Model 210CX | | Clear Floor two post lift |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 61s |
| Max. Lifting height: (w/o extension adapter) | A | 1896mm (74 5/8")~1944mm(76 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1972mm (77 5/8")~2020mm(79 1/2") |
| Max. lock height: (w/o extension adapter) | 1846mm (72 11/16")~1894mm(74 9/16") |
| Max. lock height: (w/ extension adapter) | 1922mm (75 11/16")~1970mm(77 9/16") |
| Overall Height | B | 3854mm (151 3/4") |
| Overall Width | C | 3676mm (144 23/32") |
| Drive-Thru Clearance | D | 2720mm (107 3/32") |
| Width Between Columns | E | 3010mm (118 1/2") |
| Minimum Pad Height | F | 95mm (3 3/4") |
| Gross Weight | | 763kg (1,682 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 12 Units/20'GP
30 Units/40'GP |
| Packing Dimension | | 3920 X 510 X 820 mm |
