210SAC
Clear Floor two post lift
The best asymmetric
The implementation of Super Asymmetric arms on PEAK 210SAC has proven to be highly successful. Unlike the complex designs of other competitors to achieve asymmetric functionality, PEAK's Super Asymmetric technology is more streamlined and easy to install, making it an engineering paragon.It can load the vehicle in symmetric or asymmetric configuration, creating more door-open clearance.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

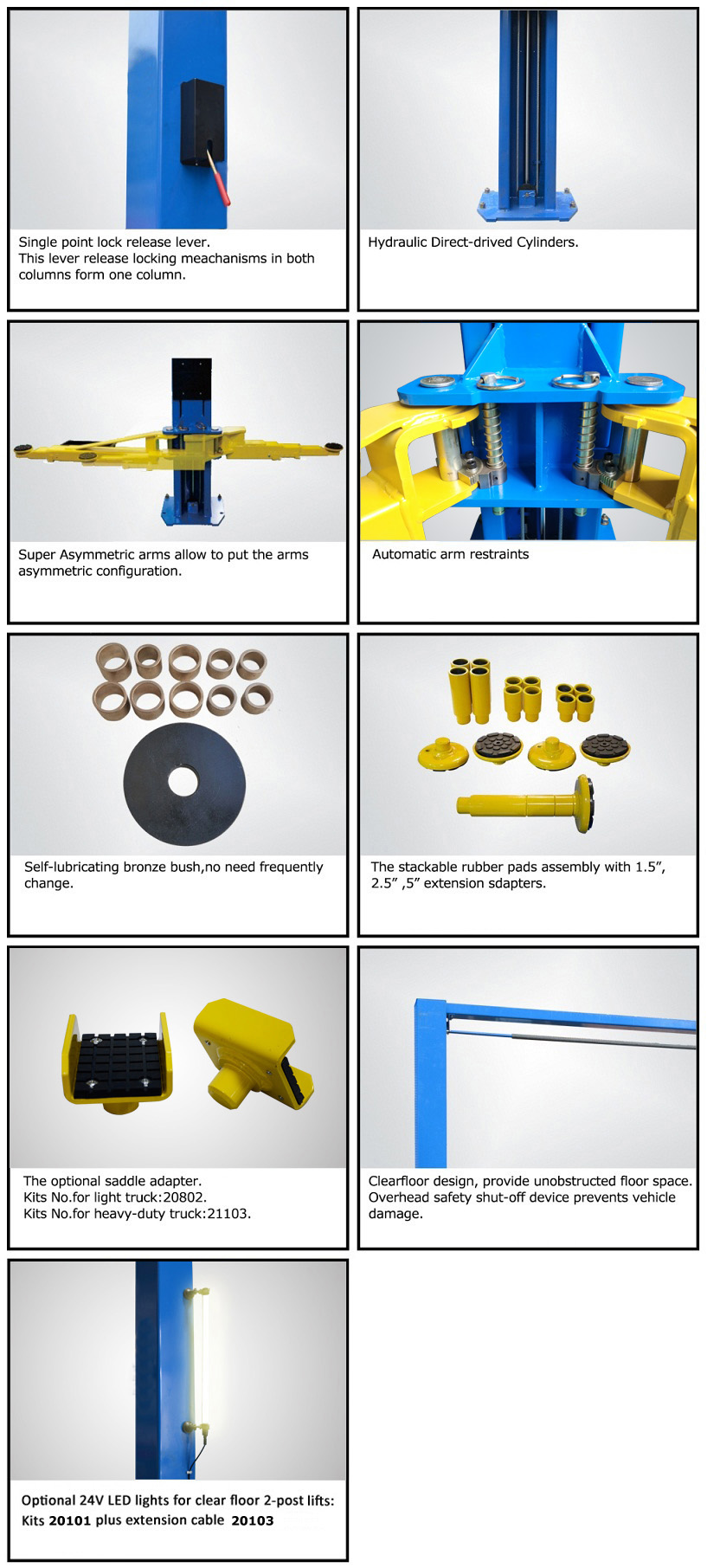

• 4500kg (10,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
•
arms allow to load different vehicles in an asymmetric or symmetric configuration;
• Overhead safety shut-off device prevents vehicle damage;
• Extremely long carriages are equipped to enhance the stability and durability;
• Aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

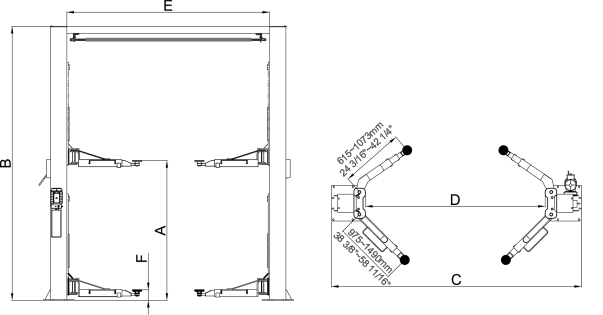

| Model 210SAC | | Clear Floor two post lift |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 61s |
| Max. Lifting height: (w/o extension adapter) | A | 1896mm (74 5/8")~1944mm(76 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1972mm (77 5/8")~2020mm(79 1/2") |
| Max. lock height: (w/o extension adapter) | 1846mm (72 11/16")~1894mm(74 9/16") |
| Max. lock height: (w/ extension adapter) | 1922mm (75 11/16")~1970mm(77 9/16") |
| Overall Height | B | 3854mm (151 3/4") |
| Overall Width | C | 3516mm (138 7/16") |
| Drive-Thru Clearance | D | 2560mm (100 25/32") |
| Width Between Columns | E | 2850mm (112 7/32") |
| Minimum Pad Height | F | 95mm (3 3/4") |
| Gross Weight | | 758kg (1,671 lbs) |
| Motor | | 3.0HP |

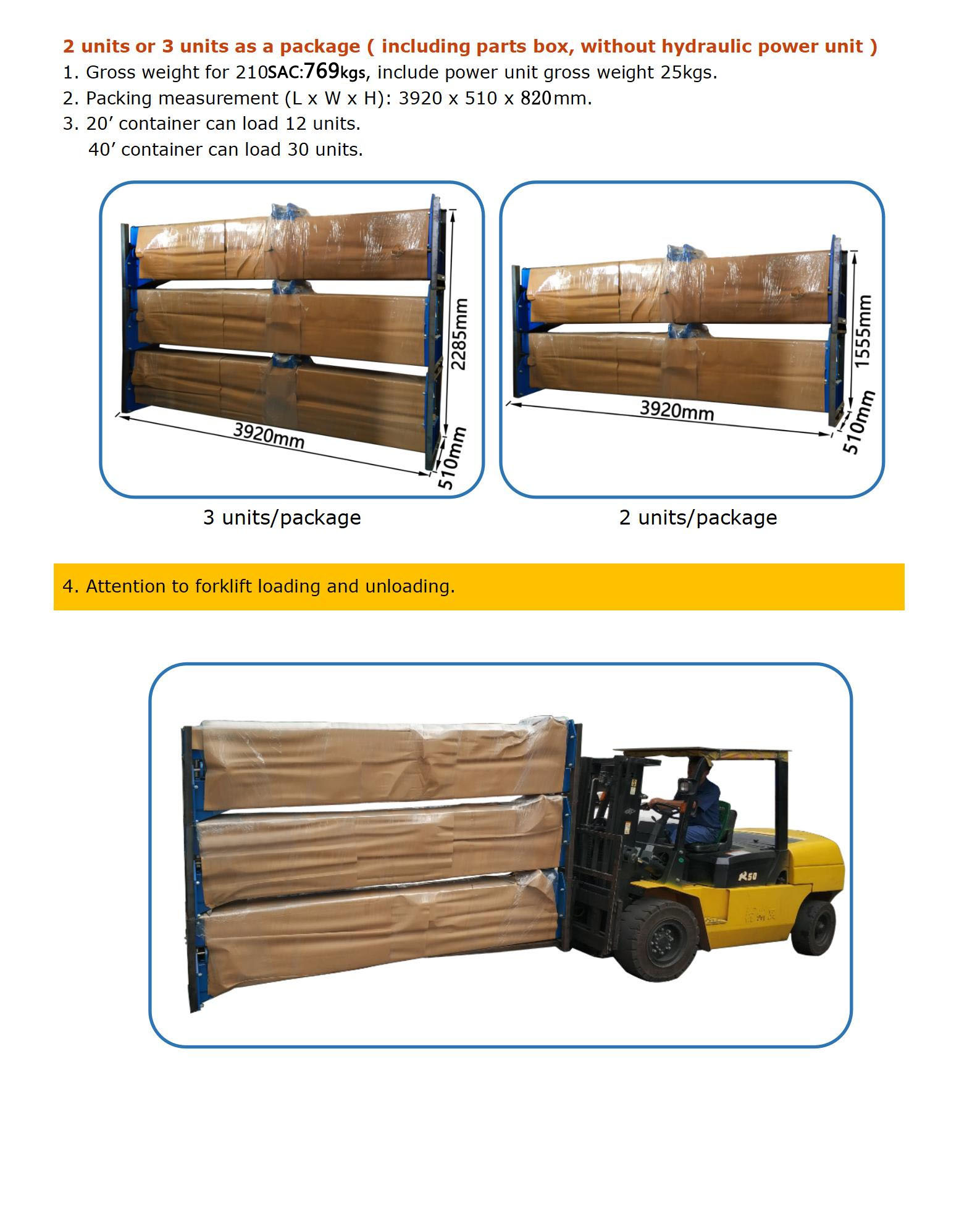

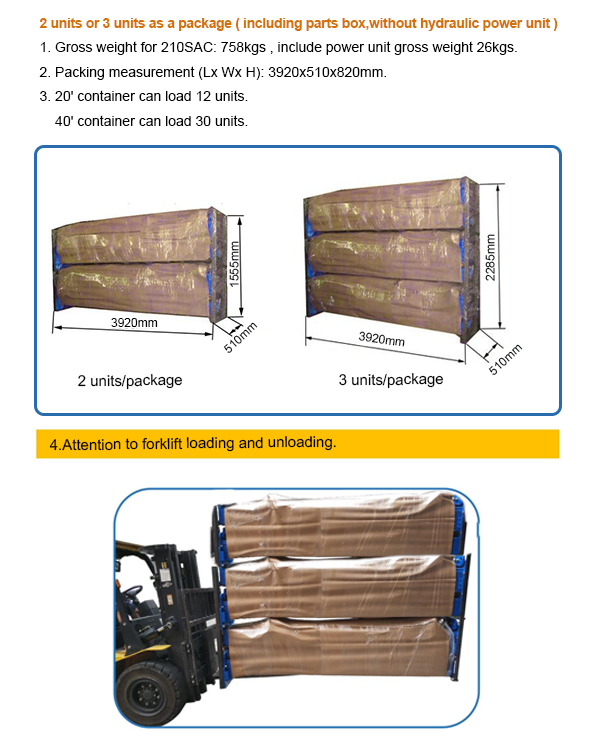

| QTY of Container | | 12 Units/20'GP
30 Units/40'GP |
| Packing Dimension | | 3920 X 510 X 820 mm |
