412A
ALIGNMENT FOUR-POST LIFT
Excellent Alignment Service
PEAK 412A delivers the excellent alignment perfomance for various vehicles max to 5500KG. It's powerful and reliable to expand your service business from cars to trucks.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

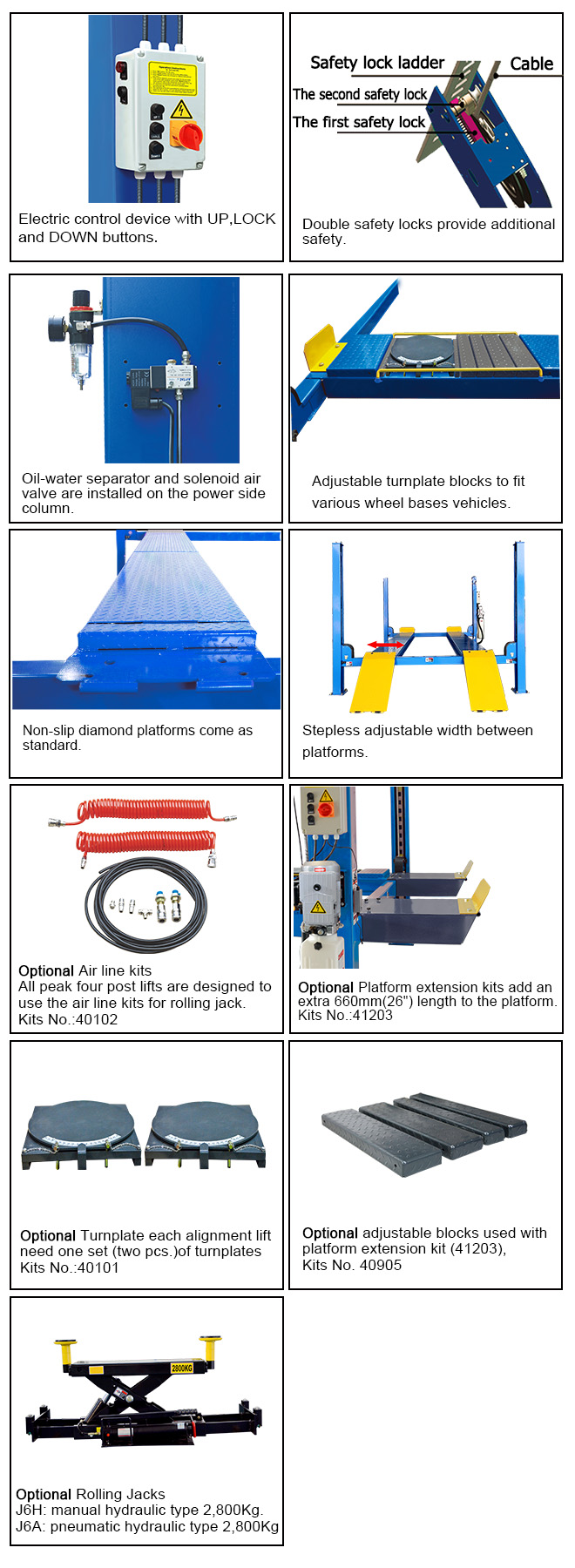

• Lifting capacity: 5500KG, CE certified.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.
| Model 412A | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 5500kg (12,000lbs) |
| Lifting Time | | 63s |
| Overall Length (Inc Ramps) | A | 6012mm (236 3/4") |
| Overall Length (No Ramps) | B | 5100mm (200 3/4") |
| Overall Width | C | 3208mm (126 1/4") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max.Lifting Height | E | 1920mm (75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") |
| Overall Height | F | 2185mm (86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J | 1100mm(431/4")
Min.1000mm（39 3/8")~
Max.1300mm (51 1/8") |
| Outside Edge of Runways | K | 2116mm (83 1/4")
Min.1101mm(43 3/8")~
Max.2316mm (91 1/8") |
| Min. Four Wheel Align | L | 2000mm (78 3/4") |
| Max. Four Wheel Align | M | 4000mm (157 1/2") |
| Max. Two Wheel Align | N | 4150mm (163 3/8") |
| Gross Weight | | 1334kg (2,941 lbs) |
| Motor | | 3.0 HP |
