409-HP
4-POST PARKING LIFT
A parking lift for full range vehicle including car,SUV and light truck. Similar to model 408-HP,but longer,wider and heavier.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg lifting capacity

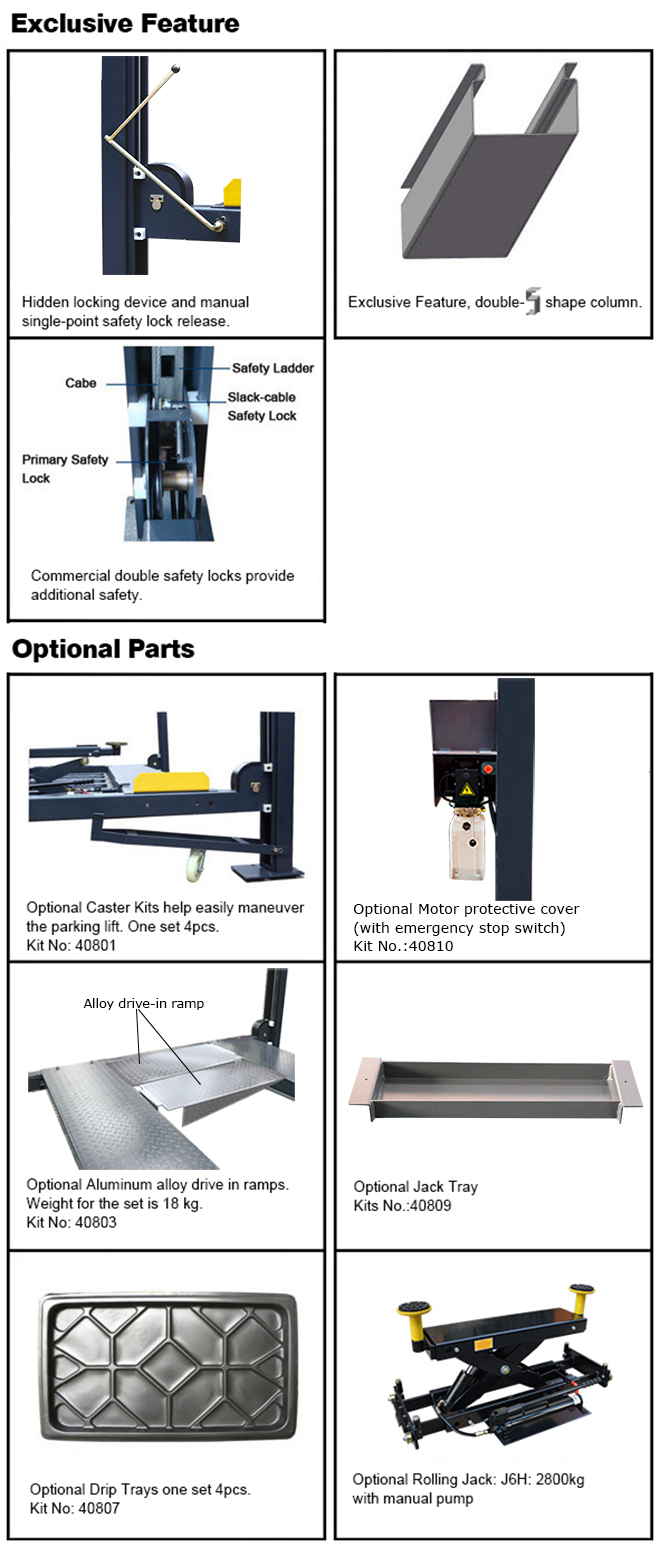

• PEAK exclusive hidden safety lock and manual single-point release device
• Multi safety locks in each column
• Adjustable lock ladder
• Double-
shape columns for increase the columns strength
• Non-slip platform
• Standard configuration with 4 wheel stops which is more safe
• Flexible: Power side column can be installed at any Corner
• Portable: it can be moved easily by using the optional caster kits
| Model 409-HP | 4-Post Parking Lift |
| Lifting Capacity | 4000kg |
| Lifting Time | 122s(110V)/67s(220V) |
| Overall Length (Inc Ramps) A | 5965mm (234 7/8") |
| Overall Length (No Ramps) B | 5115mm (201 3/8") |
| Overall Width C | 3106mm (122 1/4") |
| Width Between Posts D | 2860mm (112 5/8") |
| Max.Lifting Height E | 2227mm (87 3/4") |
| Overall Height F | 2455mm (96 5/8") |
| Minimum Height G | 155mm (6 1/8") |
| Max.Underneath Height H | 2107mm (83") |
| Drive-Thru Clearance I | 2496mm (98 1/4") |
| Width Between Runways J | 1077mm (42 3/8") |
| Outside Edge of Runways K | 2093mm (82 3/8") |
| Gross Weight | 904kg |
| Motor | 1.5HP 110V/3.0HP 220V |
| QTY of Container | 12Units/20'GP 24Units/40’GP |
| Packing Dimension | 5100 X 560 X 770mm |
| | |
