Base plate two post lift
Cost-effective first choice
PEAK's commitment to world class products continues with Peak 208. As a cost-effective model, it's equipped with various PEAK advancements: manual single-point lock release, 4 three-stage arms, and high-standard cylinders with imported seals. By delivering high efficiency, durability, and safety, 208 is surely your first choice.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg (9,000 lbs) Capacity

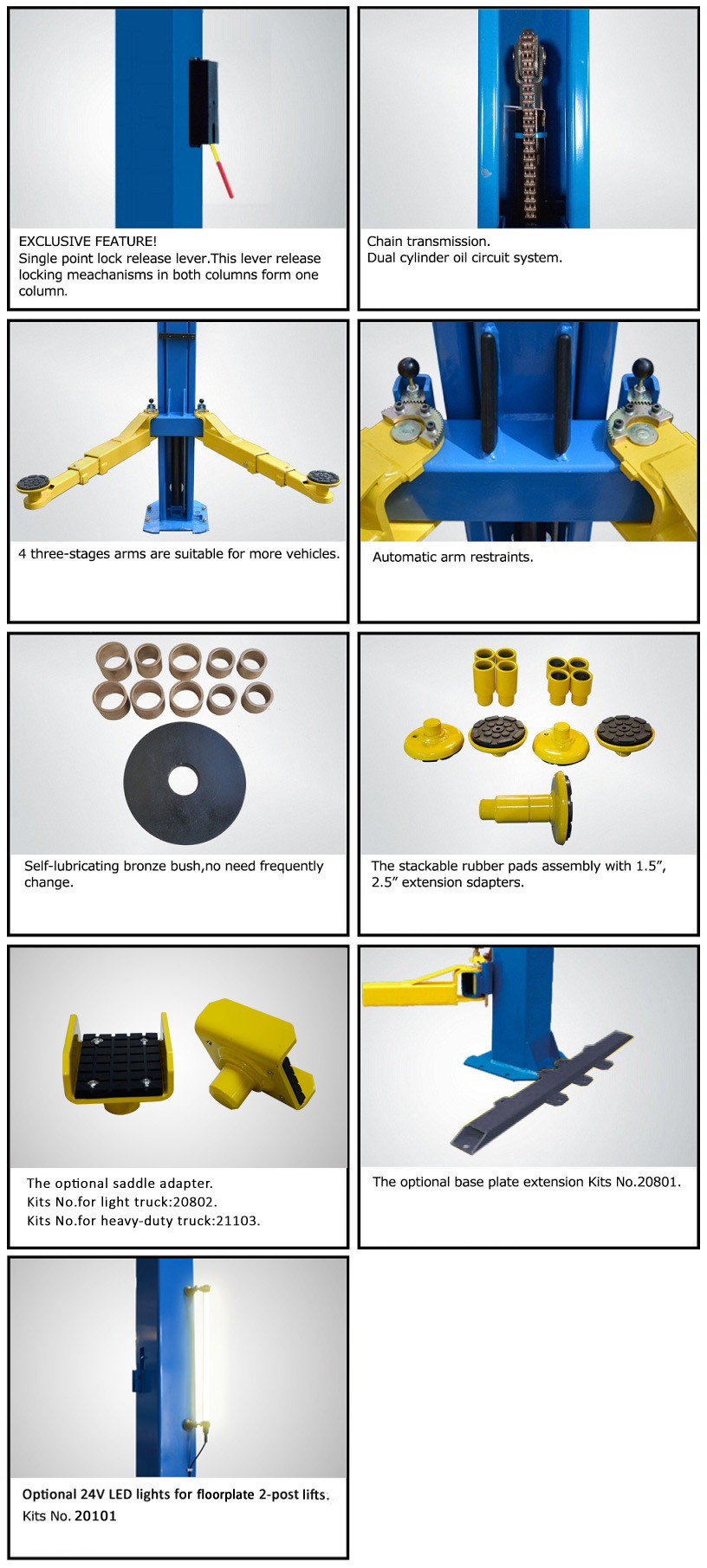

• Dual hydraulic cylinders, designed and made on high standard, high quality seals.
• 4 three-stage arms are suitable for more vehicle.
• Aero cable used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Exclusive feature: single-point safety release by handle.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors
• Automatic arms restraints
• Hydraulic power unit

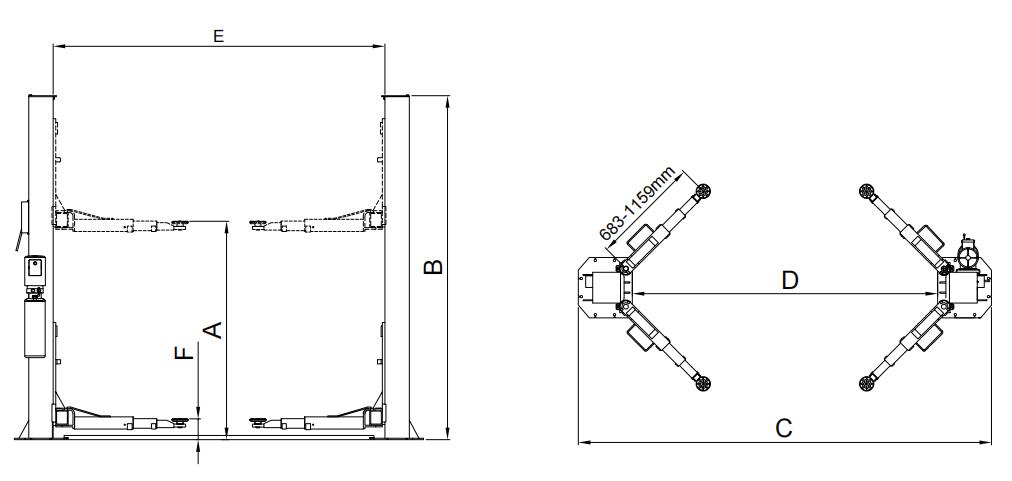

| Model 208 | | Base plate two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 37s |
| Max. Lifting height: (w/o extension adapter) | A | 1830mm (72" ) |
| Max. Lifting height: (w/ extension adapter) | 1932mm (76" ) |
| Max. lock height: (w/o extension adapter) | 1784mm (70 1/4" ) |
| Max. lock height: (w/ extension adapter) | 1886mm (74 1/4" ) |
| Overall Height | B | 2850mm (112 1/4") |
| Overall Width | C | 3390mm (133 1/2") |
| Drive-Thru Clearance | D | 2554mm (100 9/16") |
| Width Between Columns | E | 2780mm (109 7/16") |
| Minimum Pad Height | F | 90mm (3 9/16") |
| Gross Weight | | 577kg (1,272 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 25 Units/20'GP 50 Units/40'GP |
| Packing Dimension | | 2910 X 450 X 750 mm |
