Base plate two post lift
The Specialist
The PEAK 209 boasts PEAK's unique auto-engaged double lock and single-point lock release mechanism. It also includes 4-three stage arms to accommodate a wider range of vehicles. This base plate design is perfect for low ceiling workshops. PEAK 209 is the specialist for your diversify lifting demands.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

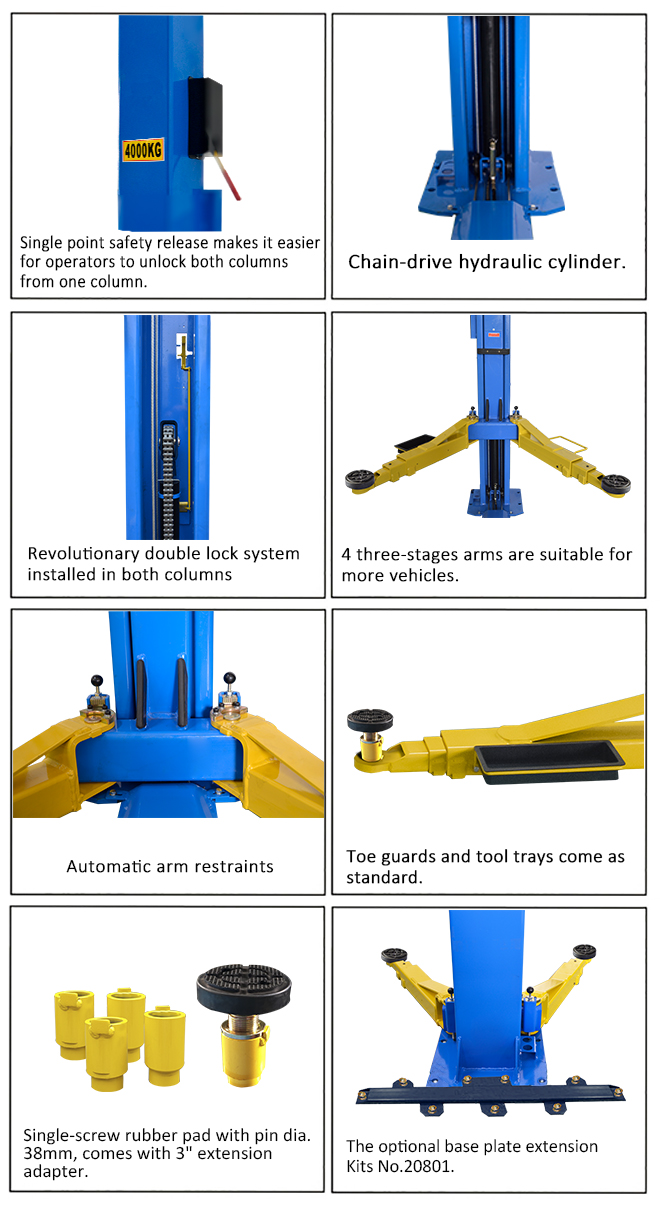

• 4000kg (9,000 lbs) capacity;
• Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Revolutionary patented double-lock system is equipped in both columns;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

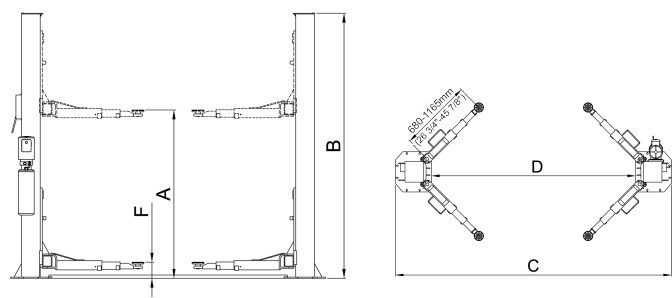

| Model 209 | | Base plate two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 37s |
| Max. Lifting height: (w/o extension adapter) | A | 1814mm(71 7/16" )~1846mm(72 11/16") |
| Max. Lifting height: (w/ extension adapter) | 1890mm(74 5/8")~1922mm(75 11/16") |
| Max. lock height: (w/o extension adapter) | 1774mm(69 13/16" )~1806mm( 71 1/8") |
| Max. lock height: (w/ extension adapter) | 1850mm(72 13/16" )~1882mm(74 1/16") |
| Overall Height | B | 2742m (108") |
| Overall Width | C | 3350mm (131 7/8") |
| Drive-Thru Clearance | D | 2513mm (99") |
| Width Between Columns | E | 2780mm (109 7/16") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 592kg (1,305 lbs) |
| Motor | | 3.0HP |

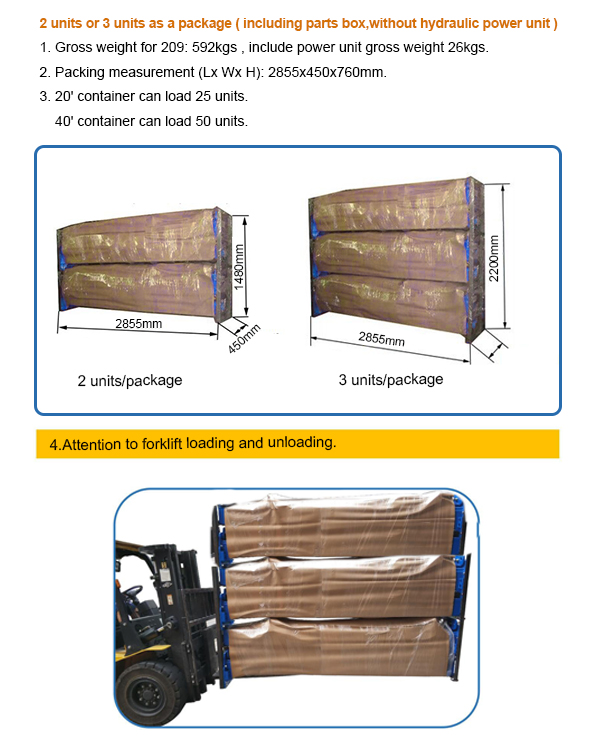

| QTY of Container | | 25 Units/20'GP
50 Units/40'GP |
| Packing Dimension | | 2855 X 450 X 760 mm |
