209X
Base plate two post lift
Wider & Stronger
The PEAK 209X premium base plate lift is designed to provide a wider and more comfortable lifting experience. Its reinforced structure not only increases reliability but also allows for a broader range of vehicles. This makes it the ideal choice for workshops and garages, particularly those with low ceilings.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

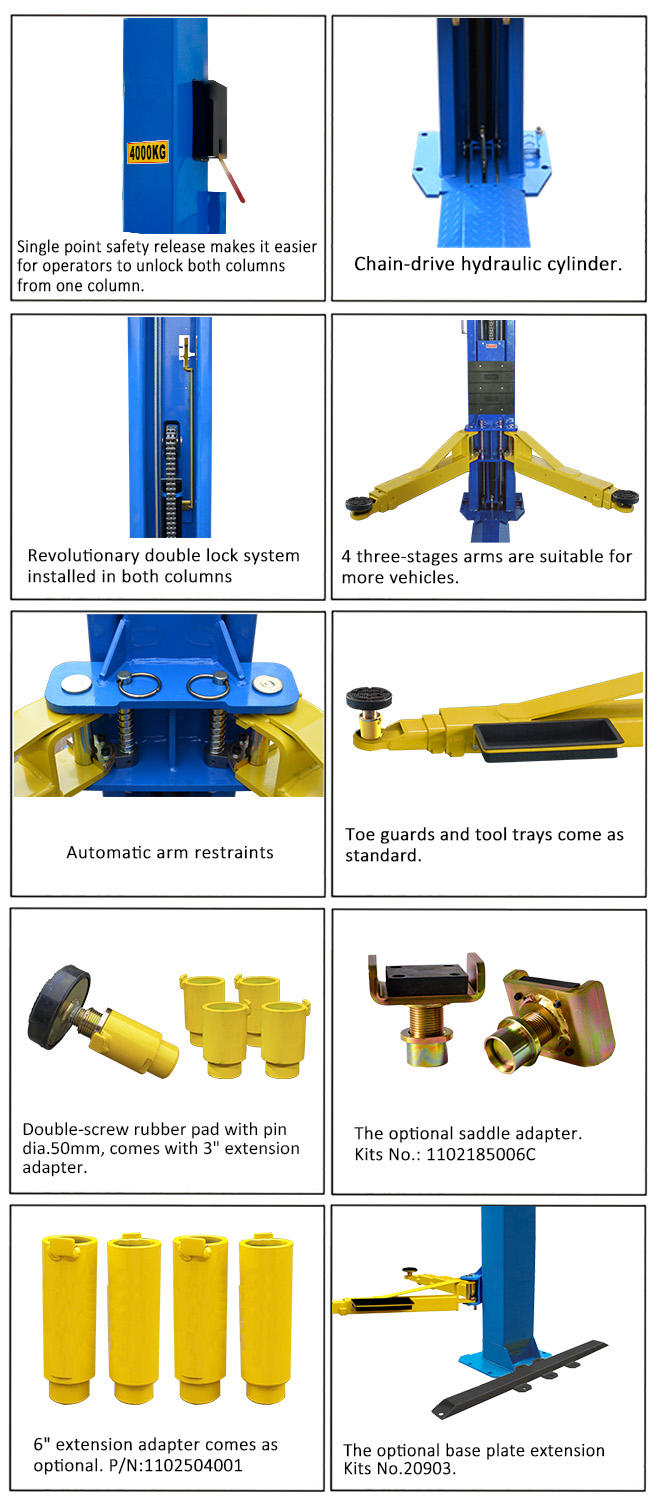

• 4000kg (9,000 lbs) Capacity.
• Dual hydraulic chain-drive cylinders manufactured on high standard.
• 4 three-stage arms are suitable for more vehicles.
• Aero cable used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bushings.
• Single-point safety release allows technician to easily release both column locks from one column.
• Automatic arm restraints.
• Stackable rubber pad with 1.5", 2.5" and 5" extension.
| Model 209X | | Base plate two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 49s |
| Max. Lifting height: (w/o extension adapter) | A | 1955mm (77" ) |
| Max. Lifting height: (w/ extension adapter) | 2184mm (86" ) |
| Max. lock height: (w/o extension adapter) | 1915mm (75 3/8" ) |
| Max. lock height: (w/ extension adapter) | 2144mm (84 3/8" ) |
| Overall Height | B | 2841m (111 7/8") |
| Overall Width | C | 3460mm (136 1/4") |
| Drive-Thru Clearance | D | 2560mm (100 3/4") |
| Width Between Columns | E | 2850mm (112 1/4") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 717kg (1,581 lbs) |
| Motor | | 3.0HP |

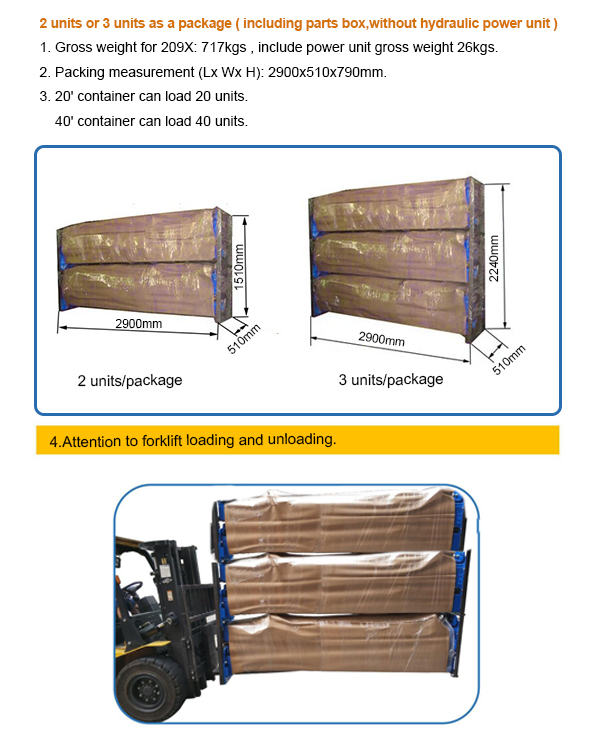

| QTY of Container | | 20 Units/20'GP 40 Units/40'GP |
| Packing Dimension | | 2900 X 510 X 790 mm |
