209X
Base plate two post lift
Wider & Stronger
The PEAK 209X premium base plate lift is designed to provide a wider and more comfortable lifting experience. Its reinforced structure not only increases reliability but also allows for a broader range of vehicles. This makes it the ideal choice for workshops and garages, particularly those with low ceilings.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg (9,000 lbs) capacity;
• Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Revolutionary patented double-lock system is equipped in both columns;
• Enhanced structure and extended arms accommodate a wider variety of vehicles;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

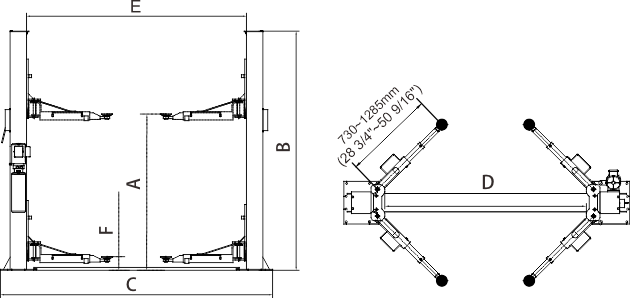

| Model 209X | | Base plate two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 49s |
| Max. Lifting height: (w/o extension adapter) | A | 1955mm (77" )~2003mm(78 7/8") |
| Max. Lifting height: (w/ extension adapter) | 2031mm (79 15/16" )~2079mm(81 7/8") |
| Max. lock height: (w/o extension adapter) | 1915mm (75 3/8" )~1963mm(77 1/4") |
| Max. lock height: (w/ extension adapter) | 1991mm (78 3/8" )~2039mm(80 1/4") |
| Overall Height | B | 2841m (111 7/8") |
| Overall Width | C | 3460mm (136 1/4") |
| Drive-Thru Clearance | D | 2560mm (100 3/4") |
| Width Between Columns | E | 2850mm (112 1/4") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 717kg (1,581 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 20 Units/20'GP
40 Units/40'GP |
| Packing Dimension | | 2900 X 510 X 790 mm |
