MR06
PORTABLE MID-RISED SCISSORS LIFT
The Mid-rise lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

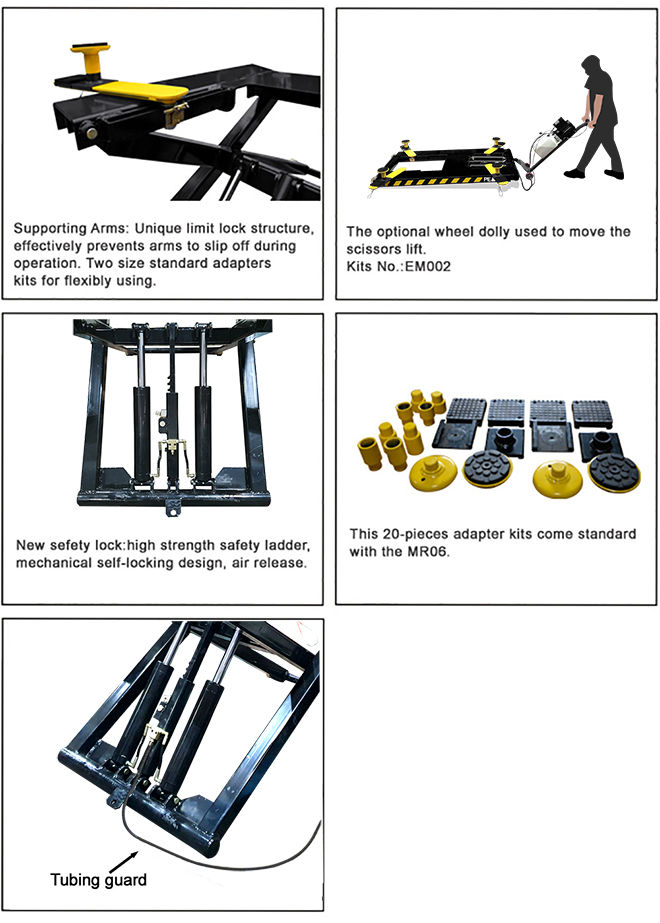

• Mechanical self-locking design,manual safety release • New safety lock:High strength safety ladder,mechanical self-locking design,manual safety releas
• Portable design: Easy to move the lift with the power unit stand
• Two hydraulic cylinders with flow restrictor
• High speed: From 0-1090 mm(43”) in just 26 seconds
• Standard adapter kits included
| Model MR06 | Portable Mid - rised Lift |
| Lifting Capacity | 2800kg |
| Lifting Time | 26s |
| Lifting Height | A1 1070mm (42 1/8") |
| Minimum Height | A2 105mm (4 1/8") |
| Platform Width | B 1000mm (39 3/8") |
| Swing Width | C 1684mm (66 1/4") |
| Overall Length | D 1885mm (74 1/4") |
| Gross Weight | 415kg (915lbs) |
| Motor | 1.5 HP/2.0HP |

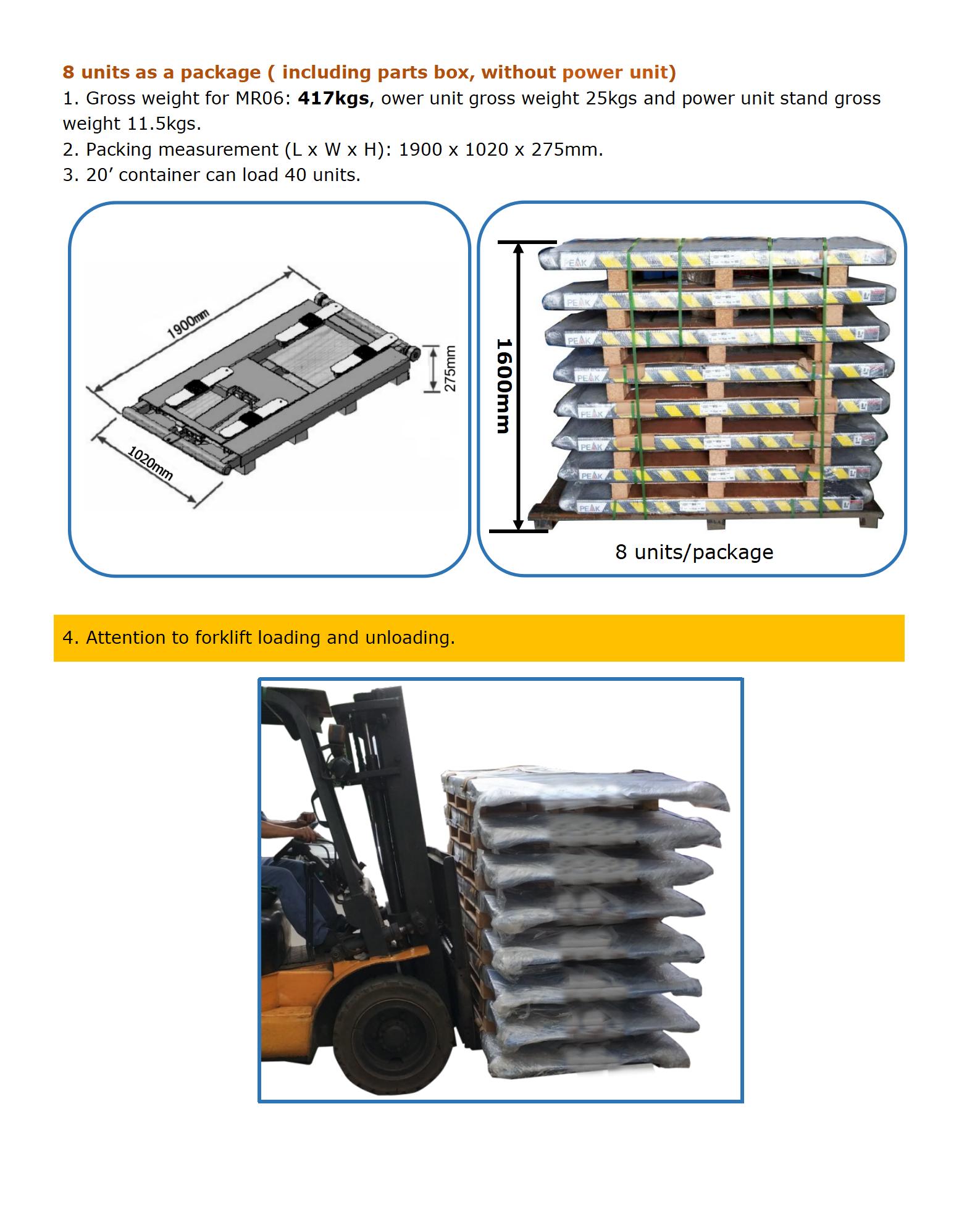

| QTY of Container | 40 Units/20'GP |
| Packing Dimension | 1900 X 1020 X 275 mm |
| | |
