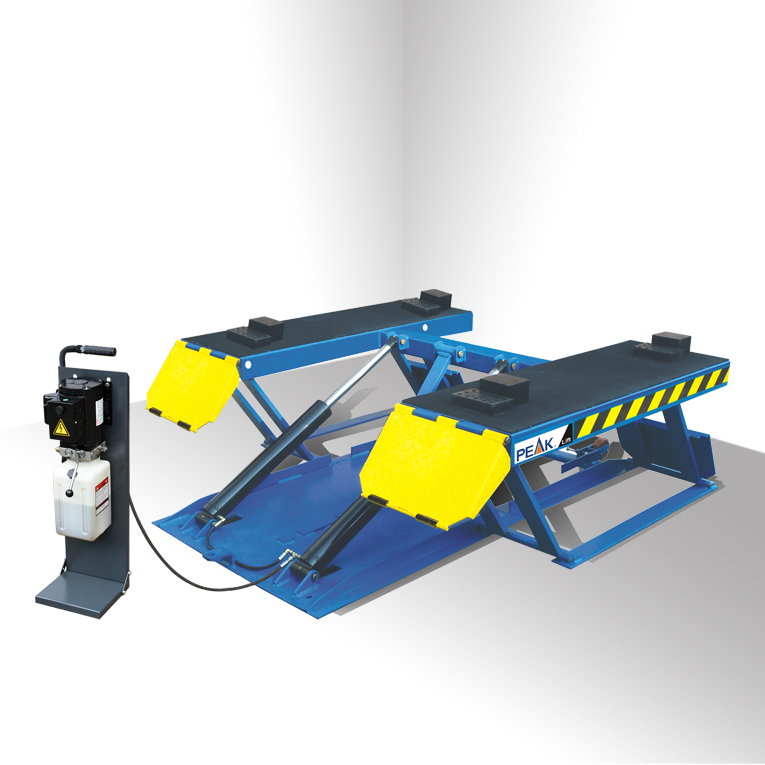

LR10
PORTABLE LOW-RISED SPECIALITY LIFT
The new LR10 gets some great improvements include sunken structure and redesigned platforms, supporting a hefty 4500KG capacity. Its large platforms accommodate a variety of vehicles, from compact cars to SUVs and MPVs, ensuring strong performance for tire servicing, suspension work, and body repairs.
Whether you're looking to enhance your workshop's capabilities or streamline portable services, our LR series delivers reliable performance and versatility.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
● Easily move the lift around service bay or garage by the new dolly.

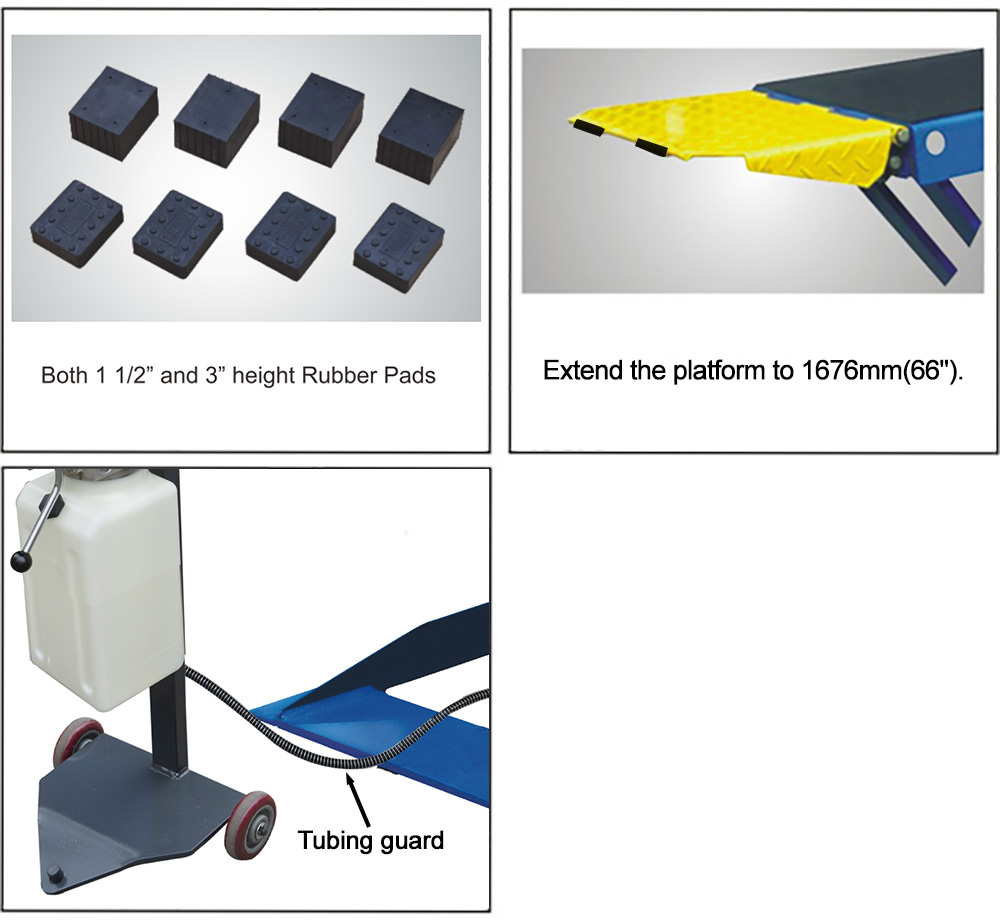

● Rugged frame platform with hard-rubber pad make lifting a vehicle stable and quickly.
● Multiple mechanical lock with gravitational guidance release.
● Dual hydraulic cylinders provide 4500kg(10,000lbs) high capacity demand.
| Model LR10 | Portable Low- rised Lift |
| Lifting Capacity | 4500kg |
| Lifting Time | 35s |
| Max. Liftting Height | A1 615mm (24 3/16") |
| Minimum Height | A2 105mm (4 1/8") |
| Runway Length | B 1452mm (57 3/16") |
| Overall Length | C 2135mm (84 1/16") |
| Width Between Runways | D 868mm (34 1/8") |
| Overall Width | E 1980mm (77 15/16") |
| Overall Runway Length(Inc. Ramp) | F 1780mm (70 1/16") |
| Gross Weight | 477kg (1052lbs) |
| Motor | 1.5/3.0HP |
| QTY of Container | 24 Units/20'GP |
| Packing Dimension | 2000 X 1800 X 220 mm |
| |
