J6H
Jack with Manual Pump
Capacity: 2800kg (6,000 lbs)
Optional parts for 4-Post lifts or ScissorLifts
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
| Model | | J6H |
| Lifting Capacity | | 2800kg (6,000 lbs) |
| Lifting Time | | 50s |
| Arm Pads Reach | A | 840-1357mm (33 1/8-53 3/8”) |
| Min.Height | B | 210mm (8 1/4") |
| Support Base Width | C | 854-1342mm (33 5/8"-52 7/8") |
| Min.rubber pad Height | D | 215mm (8 1/2") |
| Max. Lifting Height (Without adapters) | E | 445mm (17 1/2") |
| Max. Lifting Height (With adapters) | | 547mm (21 1/2") |
| Overall Width | F | 510mm (20”) |
| Pump | | Hand Pump |

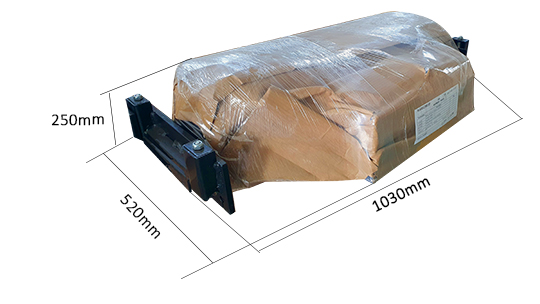

Gross weight for J6H: 114kgs
