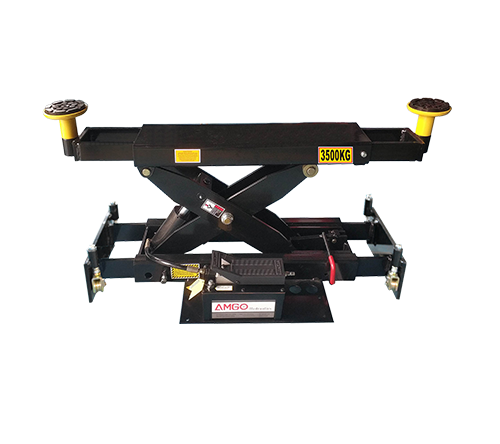

RJ-8A
The RJ-8A with 3500kgs(8,000lbs) capacity can stand out more versatility performance and more widely used in shop or service bays.
It's a great option for most kind of 4-post or scissor lifts if you're thinking of servicing for either Pickups or Sports car.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

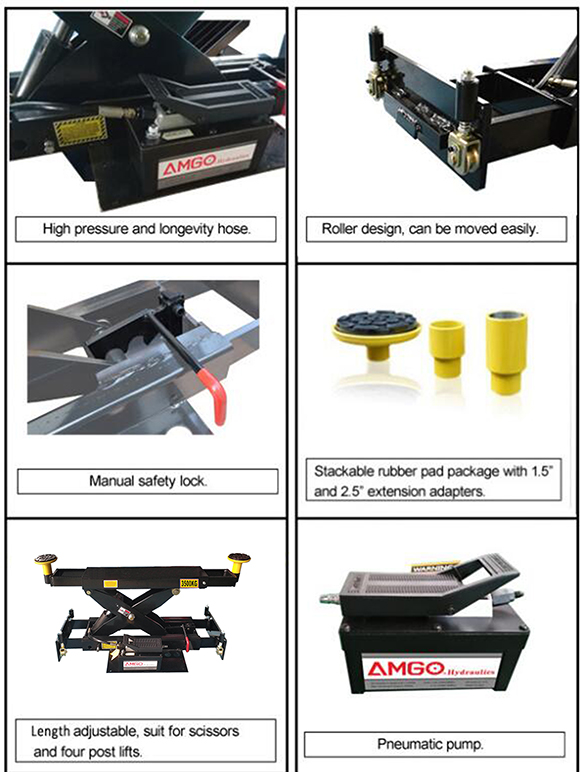

● Equipped with pneumatic hydraulic pump
● Whole set of 1.5'', 2.5'',5'' adapters & Rubber Pad Assy.which increase the lifting height so that service for most Pickups and seat high passenger cars.
● The unique patent floating roller system with protective box that ensures the jack to glide smoothly on the rail.
● Telescoping arms can be extended and positioned to the correct lifting points at any time.
● Enhance solid Scissor provides running stability
● Adjustbale lower sliding Assy. which adjust to fit many different brands of four post or scissor lifts.
● As well as fitting for width between runways from 915mm to 1435mm .
● The jack features two solid locking positions that are used when the jack raised to comfort work height.
● Convenient guradrail works as a booster handle for moving the Jack easily and protecting oil hose.
Model | | RJ-8A |
Lifting Capacity | | 3500kg (8,000 lbs) |
Lifting Time | | 22 s |
Arm Pads Reach | A | 875-1680mm (34 1/2-66 1/8”) |
Min.Height | B | 260mm (10 1/4") |
Support Base Width | C | 915-1435mm (36"-56 1/2") |
Min.rubber pad Height | D | 263mm (10 3/8") |
Max. Lifting Height (Without adapters) | E | 525mm (20 5/8") |
Max. Lifting Height (With adapters) | | 754mm (29 5/8") |
Overall Width | F | 545mm (21 1/2”) |
Air Pressure | | 0.8Mpa |
Pump | | Pneumatic Pump |

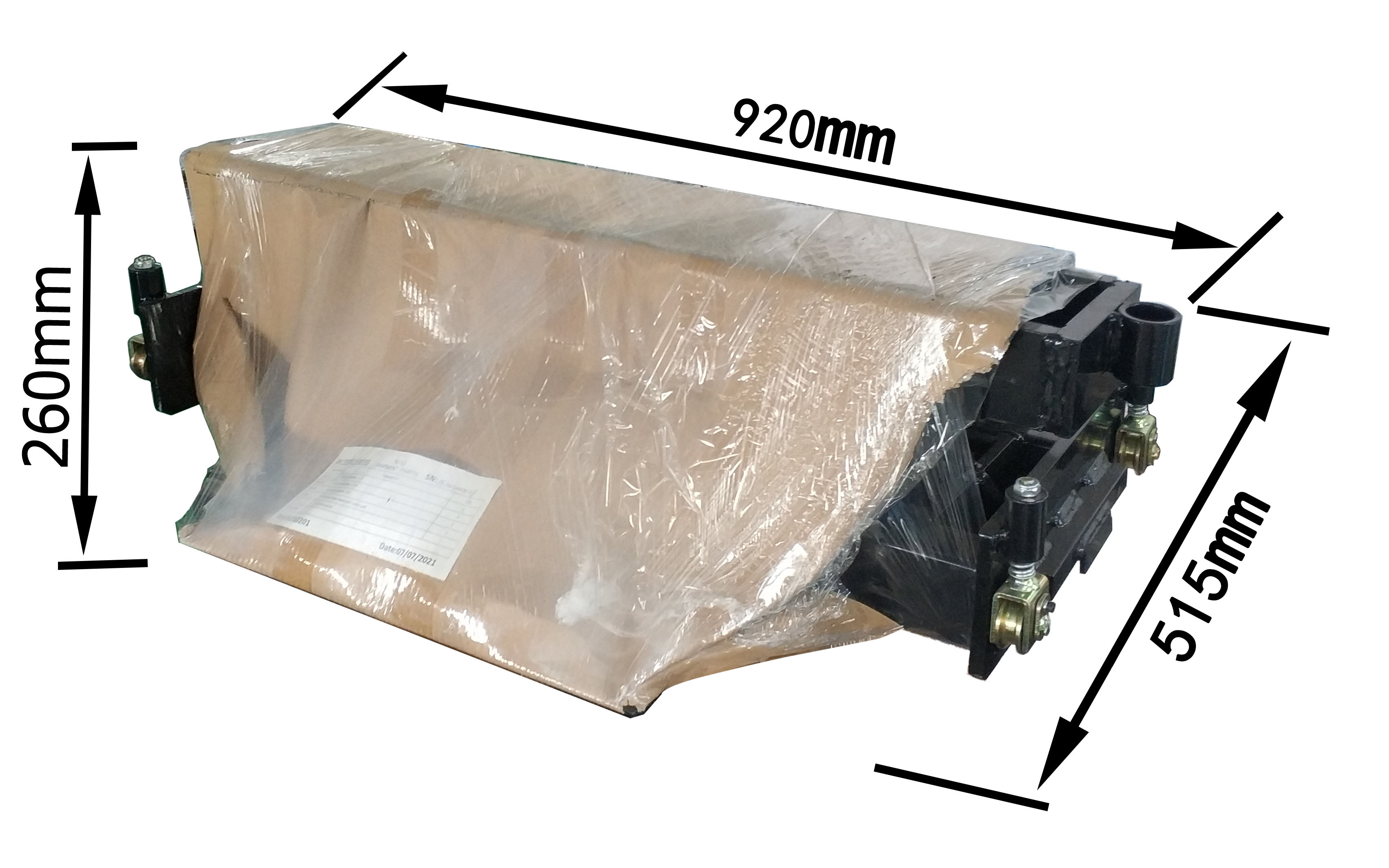

Gross weight for RJ-8A: 166kgs
