209SAC
Clear Floor two post lift
Flexible with Super Asymmetric
Features most the same as 209C, the 209SAC is introduced with our Super Asymmetric technology, which could load the vehicle on symmetric or asymmetric configurations and allows more door-open clearance.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4000kg (9,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;

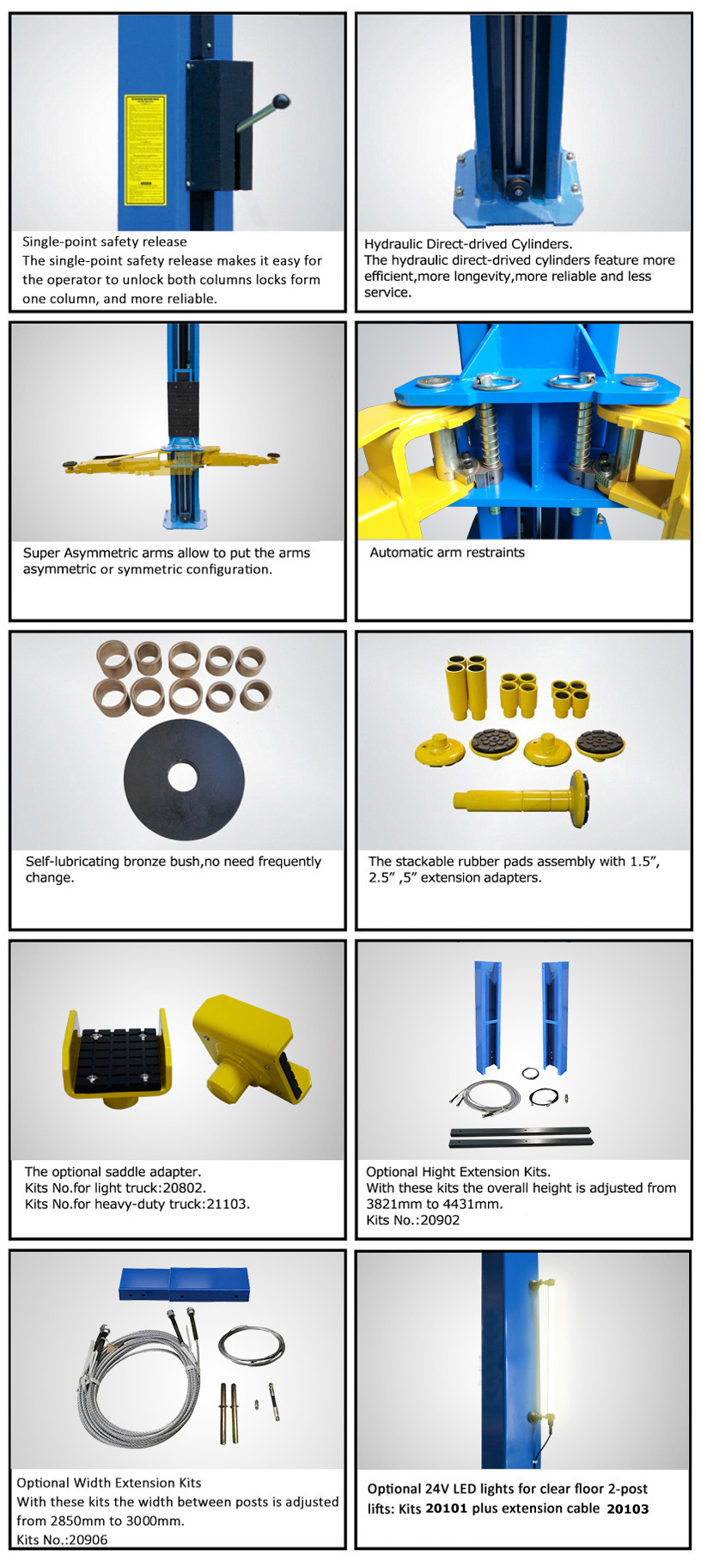

• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
•
arms allow to load different vehicles in an asymmetric or symmetric configuration;
• Overhead safety shut-off device prevents vehicle damage;
• Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
• Extremely high model, with a maximum overall height of 4445mm.
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

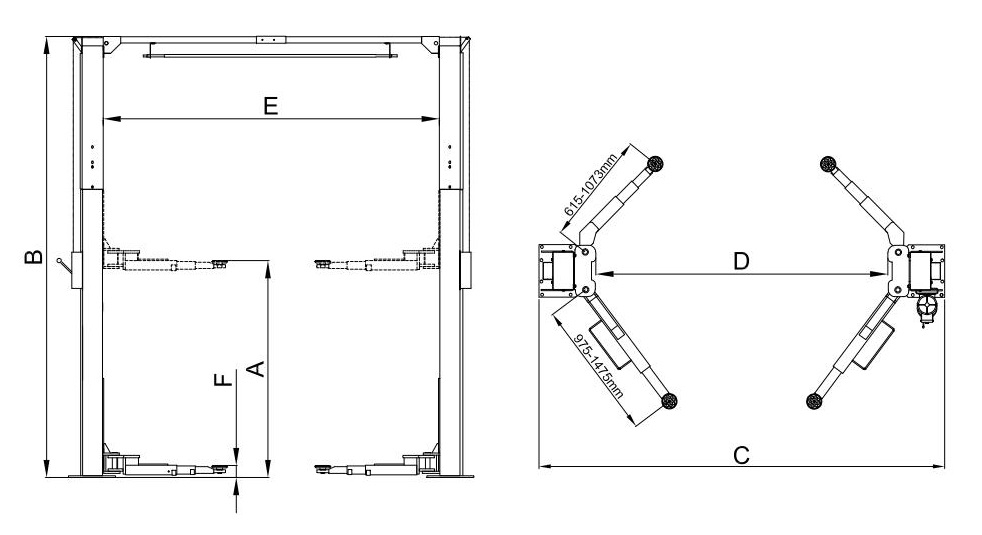

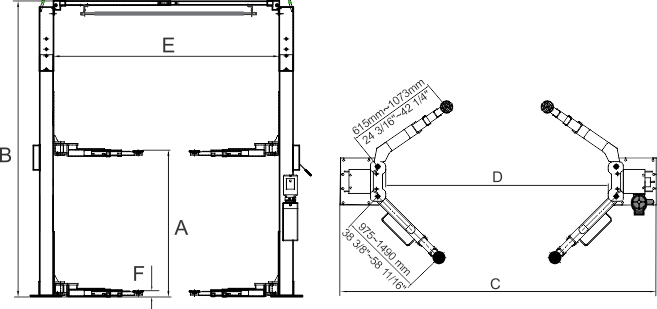

| Model 209SAC | | Clear Floor two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1821mm (71 11/16" )~1869mm(73 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1897mm (74 11/16")~1945mm(76 9/16") |
| Max. lock height: (w/o extension adapter) | 1774mm (69 13/16" )~1822mm(71 3/4") |
| Max. lock height: (w/ extension adapter) | 1850mm (72 13/16" )~1898mm(74 3/4") |
| Overall Height | B | 3635mm (143 1/8") |
| 3835mm（151"） |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 7/32") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 687kg (1,369 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 25 Units/20'GP
50 Units/40'GP |
| Packing Dimension | | 2800 X 450 X 825 mm |
