412AX
ALIGNMENT FOUR-POST LIFT
Excellent with more-wider
Another excellent more-wider alignment models of Peak 4 post lift family. More width, and more capacity, PEAK 412AX is excellent to encourage yours workshop business.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

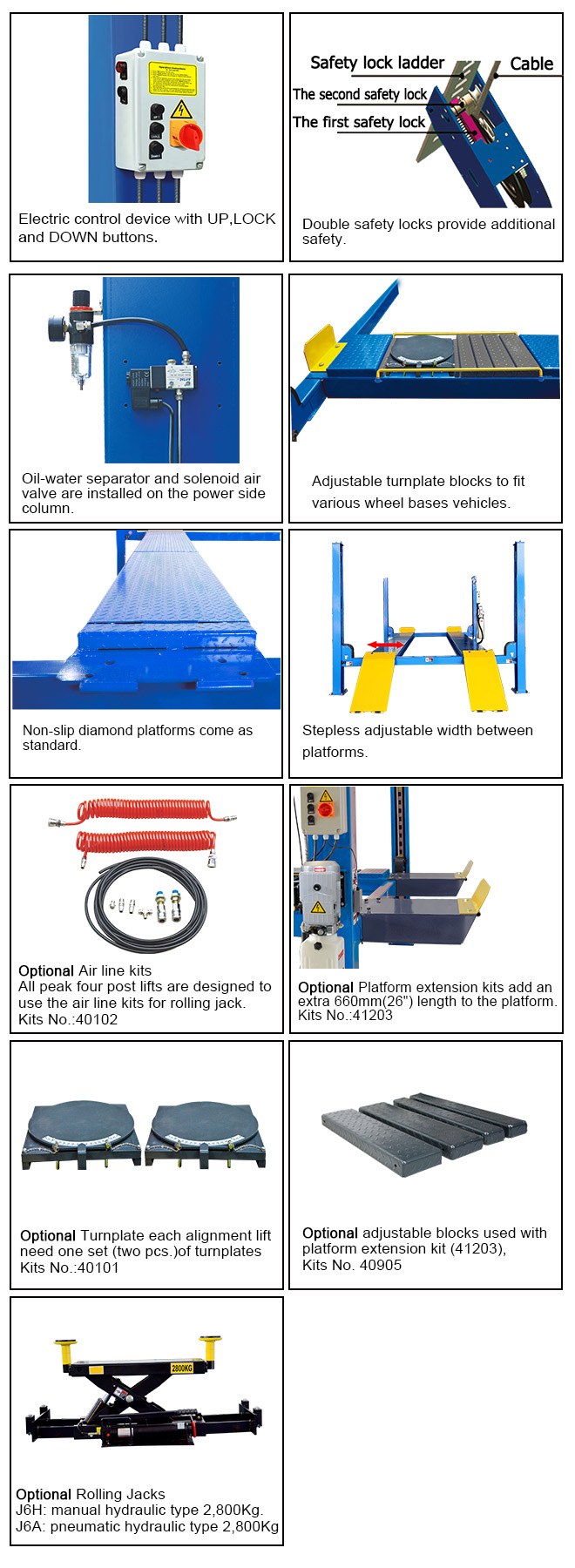

• Lifting capacity: 5500KG, CE certified.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.

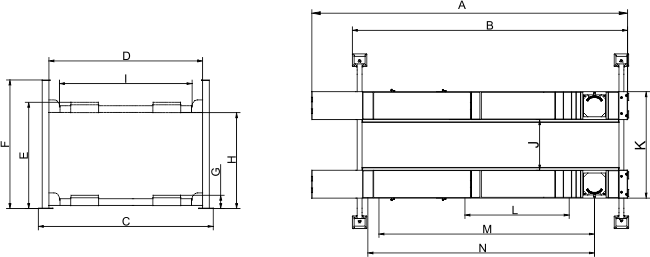

| Model 412AX | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 5500kg (12,000lbs) |
| Lifting Time | | 63s |
| Overall Length (Inc Ramps) | A | 6012mm (236 3/4") |
| Overall Length (No Ramps) | B | 5100mm (200 3/4") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max.Lifting Height | E | 1920mm (75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") |
| Overall Height | F | 2185mm (86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2646mm (104 1/4") |
| Width Between Runways | J | 1100mm(43 1/4")
Min.85mm（3 3/8")~
Max.1365mm (53 3/4") |
| Outside Edge of Runways | K | 2116mm (83 1/4")
Min.1101mm(43 3/8")~
Max.2381mm (93 3/4") |
| Min. Four Wheel Align | L | 2000mm (78 3/4") |
| Max. Four Wheel Align | M | 4000mm (157 1/2") |
| Max. Two Wheel Align | N | 4150mm (163 3/8") |
| Gross Weight | | 1338kg (2,950 lbs) |
| Motor | | 3.0 HP |
