410A
ALIGNMENT FOUR-POST LIFT
Confortable for Alignment
The more-wider alignment lift brings a more confortable way to your alignment service. The wheels have more space to turns around and be accurately detected.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

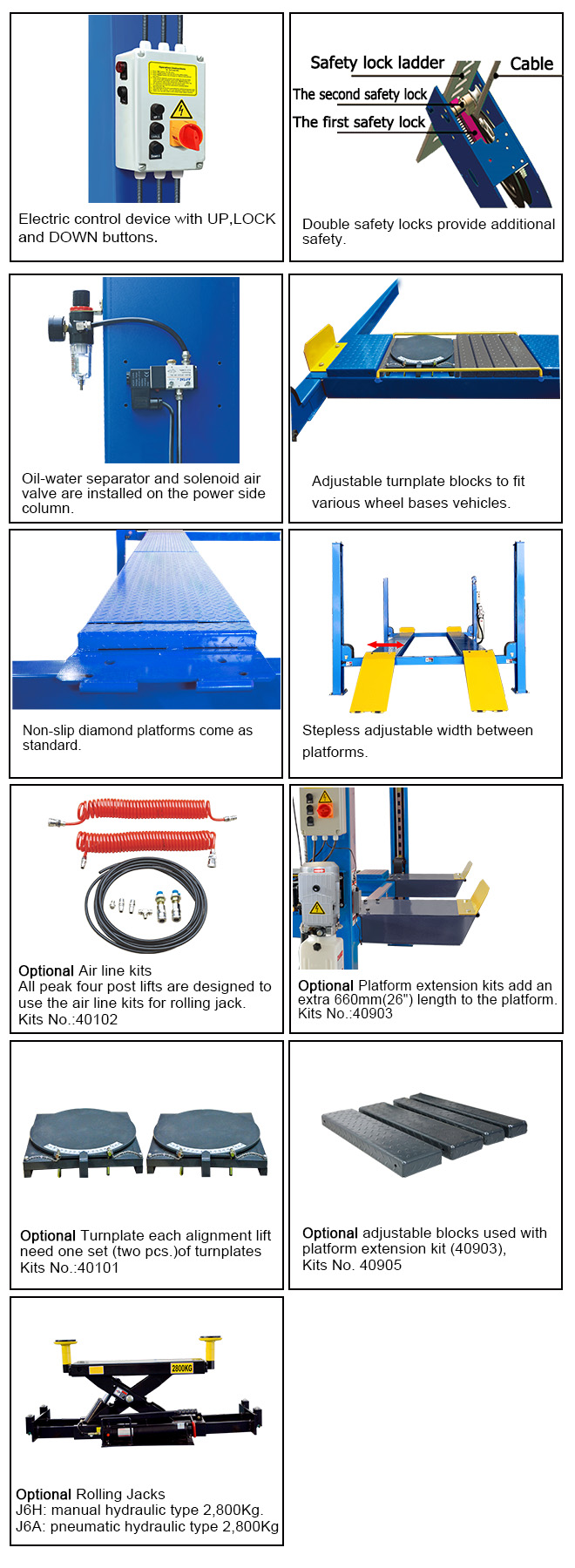

• Lifting capacity: 4500KG.
• 24V electrical control operation system.
• High quality hydraulic cylinder design and manufactured at high standard.
• Mechanical self-locking and air-release safety lock system.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.

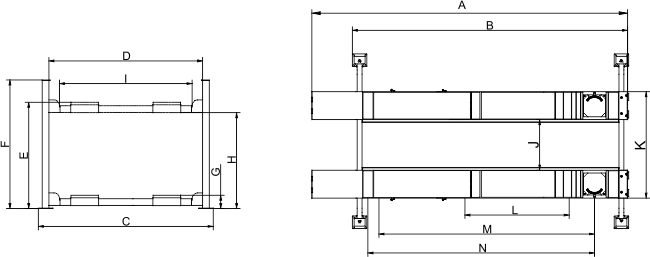

| Model 410A | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 4500kg (10,000lbs) |
| Lifting Time | | 45s |
| Overall Length (Inc Ramps) | A | 5910mm (232 5/8") |
| Overall Length (No Ramps) | B | 4998mm (196 3/4") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max.Lifting Height | E | 1920mm (75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") |
| Overall Height | F | 2185mm (86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2646mm (104 1/8") |
| Width Between Runways | J | 1100mm(43 1/4")
Min.85mm（3 3/8")~
Max.1365mm (53 3/4") |
| Outside Edge of Runways | K | 2116mm (83 1/4")
Min.1101mm(43 3/8")~
Max.2381mm (93 3/4") |
| Min. Four Wheel Align | L | 2080mm (81 7/8") |
| Max. Four Wheel Align | M | 3850mm (151 1/2") |
| Max. Two Wheel Align | N | 4000mm (157 1/2") |
| Gross Weight | | 1282kg (2,826 lbs) |
| Motor | | 3.0 HP |
