767

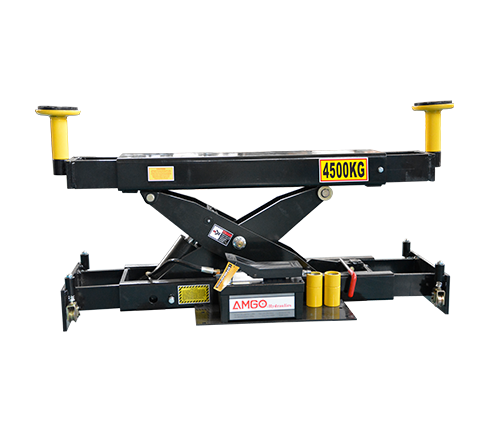

RJ-10A
Capacity: 4,500kg(10,000lbs)
It is the heavy-duty design Rolling Jack for tire service.
Especially recommend for use with the 4-post and scissor lifts with capacity more than 8Ton(18,000lbs).
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• Equipped with pneumatic hydraulic pump.
• Strengthened solid steel-frame scissor ensures the Jack is strongest so that perform service work more stable.
• Offer whole set of 1.5'',2.5'',5'' extension adapters and super-durable Rubber Pads Assy.
• Extendable arms for easy positioning and adjustability which have maximum arm reach of 1685mm(66 11/32'') and minimum 975mm(38 13/32'').
• Designed manual safety lock with two locking position which make operators access to work more convenient and comfortable.
• Adjustable lower sliding Assy. fitting for width between runways from 1005mm(39 9/16'') to 1435mm(56 1/2'').
• Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.

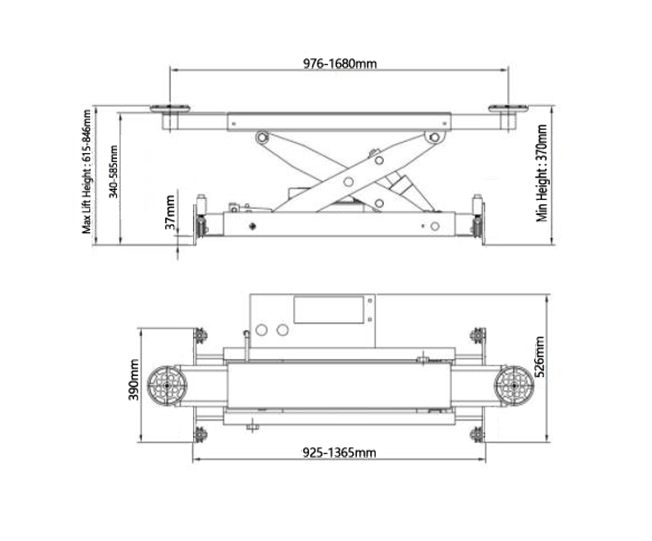

Model | | RJ-10A |
Lifting Capacity | | 4500kg (10,000 lbs) |
Lifting Time | | 22s |
Arm Pads Reach | A | 975-1685mm (38 3/8”-66 5/16”) |
Min.Height | B | 280mm (11 ") |
Support Base Width | C | 1005-1435mm (39 9/16"-56 1/2") |
Min.rubber pad Height | D | 285mm (11 1/4") |
Max. Lifting Height (Without adapters) | E | 550mm (21 5/8") |
Max. Lifting Height (With adapters) | | 779mm (30 5/8") |
Overall Width | F | 550mm (21 5/8”) |
Air Pressure | | 0.8Mpa |
Pump | | Pneumatic Pump |

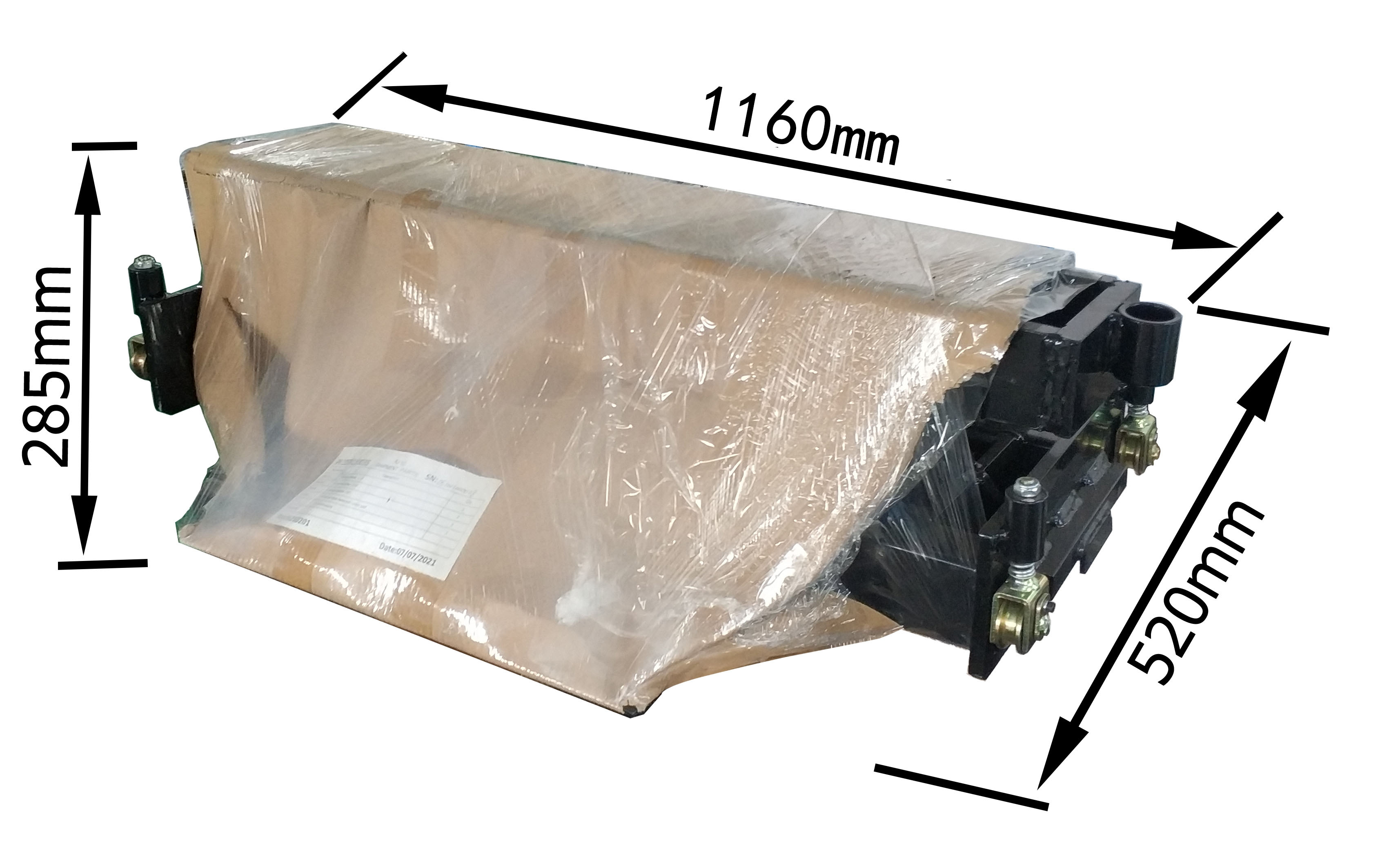

Gross weight for RJ-10A: 200kgs
