418A
Heavy Duty Alignment Service Four Post Lift
Make more greats.
The inclusion of the PEAK 418A significantly enhances alignment services for heavy-duty or long-wheelbase vehicles, providing greater comfort. The platforms are notably robust, longer, and wider, thereby offering enhanced versatility to accommodate a variety of vehicles.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

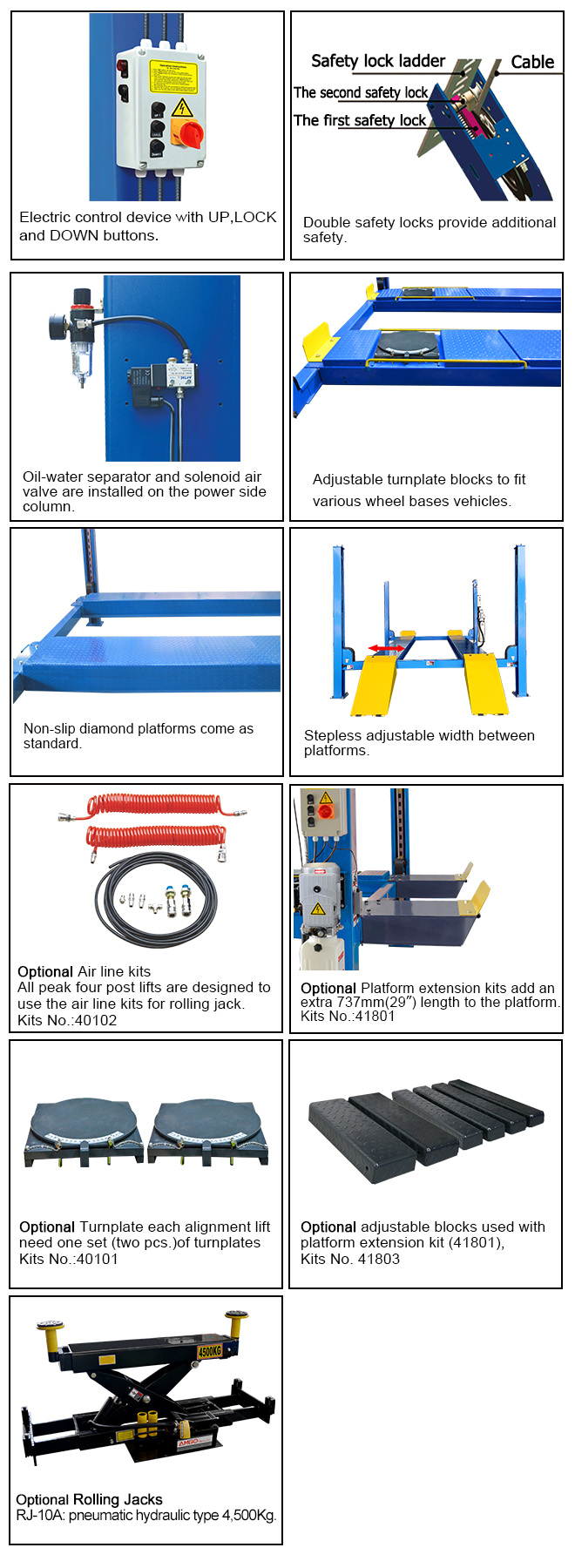

• 8000kg（18,000lbs）capacity;
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
• Adjustable turnplate pockets to fit various wheel bases.
• Optional Rolling Jack:
RJ-10A 4500kg (10,000lbs) pneumatic pump.

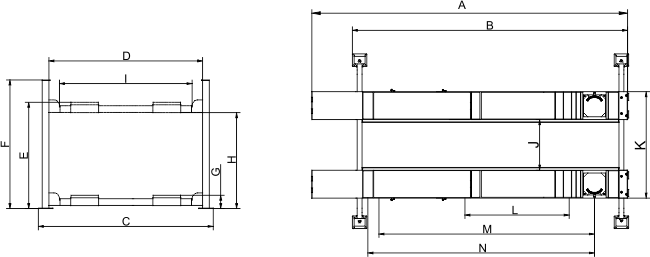

| Model 418A | | ALIGNMENT FOUR-POST LIFT |
| Lifting Capacity | | 8000kg (18,000lbs) |
| Lifting Time | | 81s |
| Overall Length (Inc Ramps) | A | 7436mm (292 3/4") |
| Overall Length (No Ramps) | B | 6408mm (252 1/4") |
| Overall Width | C | 3482mm (135") |
| Width Between Columns | D | 3180mm (112 3/8") |
| Max.Lifting Height | E | 1950mm (76 3/4") |
| Max. Lock Height to top of runway | 1880mm (74") |
| Overall Height | F | 2189mm (86 1/4") |
| Minimum Height | G | 250mm (9 7/8") |
| Max.Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2750mm (108 1/4") |
| Width Between Runways | J | 1302mm(51 1/4")
Min.85mm（3 3/8")~
Max.1468mm (57 13/16") |
| Outside Edge of Runways | K | 2418mm (95 3/16")
Min.1201mm(43 3/8")~
Max.2584mm (101 3/4") |
| Min. Four Wheel Align | L | 2530mm (99 19/32") |
| Max. Four Wheel Align | M | 4640mm (182 11/16") |
| Max. Two Wheel Align | N | 5310mm (209 1/16") |
| Gross Weight | | 2019kg (4,451 lbs) |
| Motor | | 3.0 HP |
