430E
Super Duty General Service Four Post Lift
Extended comfort
PEAK 430E is constructed with a reinforced universal beam structure, offering an additional 1500mm in length compared to the 430 model. This design enhancement allows for the lifting of longer super duty vehicles and enhances overall comfort.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

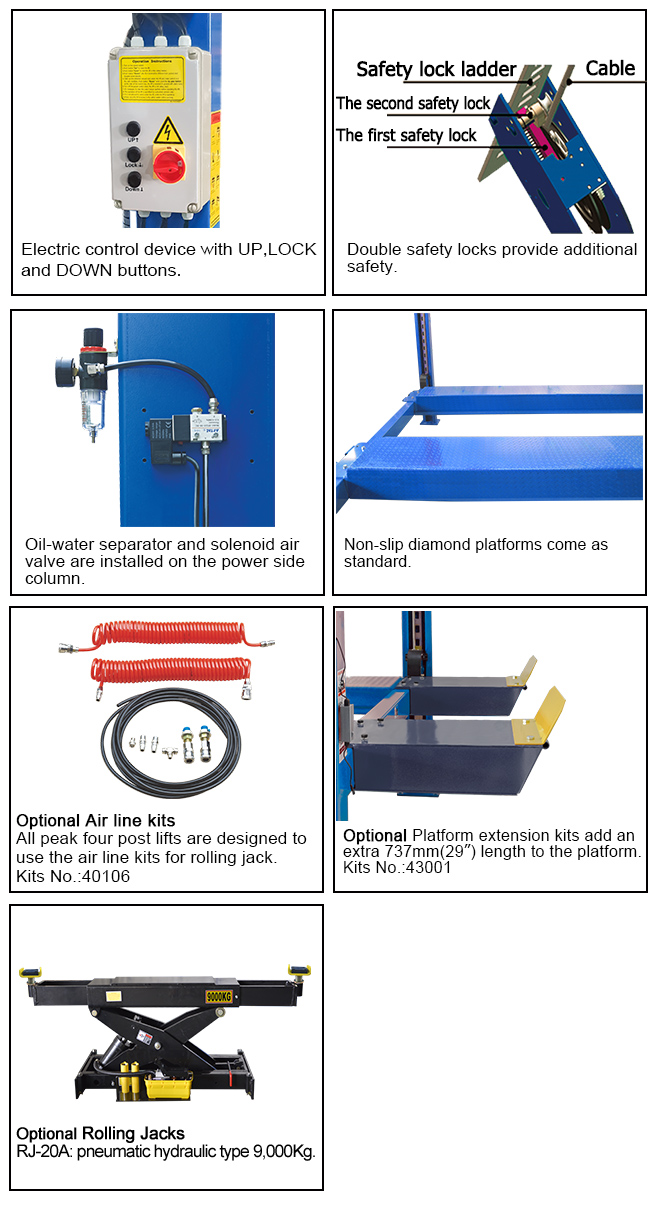

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by a second safety device.
| Model 430E | | Super Duty General Service Four Post Lift |
| Lifting Capacity | | 13500kg (30,000lbs) |
| Lifting Time | | 116s |
| Overall Length (Inc Ramps) | A | 9300mm (366 1/8") |
| Overall Length (No Ramps) | B | 8014mm (315 1/2") |
| Overall Width | C | 3794mm ( 149 3/8") |
| Width Between Columns | D | 3348mm ( 131 13/ 16") |
| Max.Lifting Height Max. Lock Height to top of runway | E | 1890mm (74 7/ 16") 1820mm (71 11/ 16") |
| Overall Height | F | 2332mm (91 13/ 16") |
| Minimum Height | G | 265mm ( 10 7/ 16") |
| Max.Underneath Height Max. Lock Underneath runway | H | 1664mm (65 1/2") 1595mm (62 3/4") |
| Drive-Thru Clearance | I | 2992mm ( 117 13/ 16") |
| Width Between Runways | J | 1140mm(44 7/8") / 1390mm(54 3/4") |
| Outside Edge of Runways | K | 2360mm(92 15/16) / 2610mm (102 3/4") |
| Gross Weight | | 3040kg (6,702lbs) |
| Motor | | 4.0 HP |
| Packing Dimension | | 8060 X 620 X1000 mm |
