Super Duty General Service Four Post Lift
Absolutely surpass expection
PEAK 440 absolutely surpasses your expectations.It can effortelessly handle nearly any massive heavy vehicles with a capcity of 18000KG. It embodies PEAK'S leading technologies on safety, top perfermance and user-friendly operations.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 18000kg (40,000 lbs) capacity;

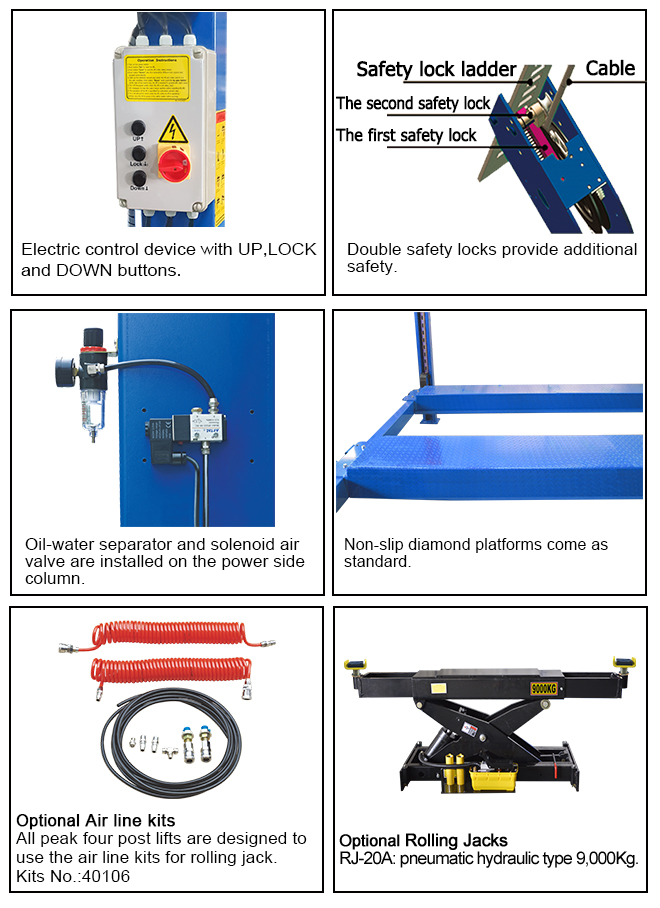

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by a second safety device.
| Model 440 | | Super Duty General Service Four Post Lift |
| Lifting Capacity | | 18000kg (40,000lbs) |
| Lifting Time | | 160s |
| Overall Length (Inc Ramps) | A | 9300mm (366 1/8") |
| Overall Length (No Ramps) | B | 8014mm (315 1/2") |
| Overall Width | C | 4100mm (161 7/8") |
| Width Between Columns | D | 3654mm (143 13/16") |
| Max.Lifting Height Max. Lock Height to top of runway | E | 1890mm (74 7/16") 1820mm (71 11/16") |
| Overall Height | F | 2332mm (91 13/16") |
| Minimum Height | G | 265mm (10 7/16") |
| Max.Underneath Height Max. Lock Underneath runway | H | 1664mm (65 1/2") 1595mm (62 3/4") |
| Drive-Thru Clearance | I | 3298mm (129 7/8") |
| Width Between Runways | J | 1246mm(49 1/16") / 1496mm(58 7/8") |
| Outside Edge of Runways | K | 2666mm(104 15/16") / 2916mm(114 13/16") |
| Gross Weight | | 3784kg (8,342lbs) |
| Motor | | 4.0 HP |
| Packing Dimension | | 8060 X 720 X1000 mm |
