440E
Super Duty General Service Four Post Lift
Absolutely For Longest and Heavist
Built with an additional 1500mm in length in comparison to the PEAK 440, the 440E stands as the most powerful equipment for professional servicing of the longest and heaviest vehicles on the road. It represents the ultimate solution for massive commercial vehicles, heavy-duty trucks, and other professional large vehicles
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 18000kg (40,000 lbs) capacity;

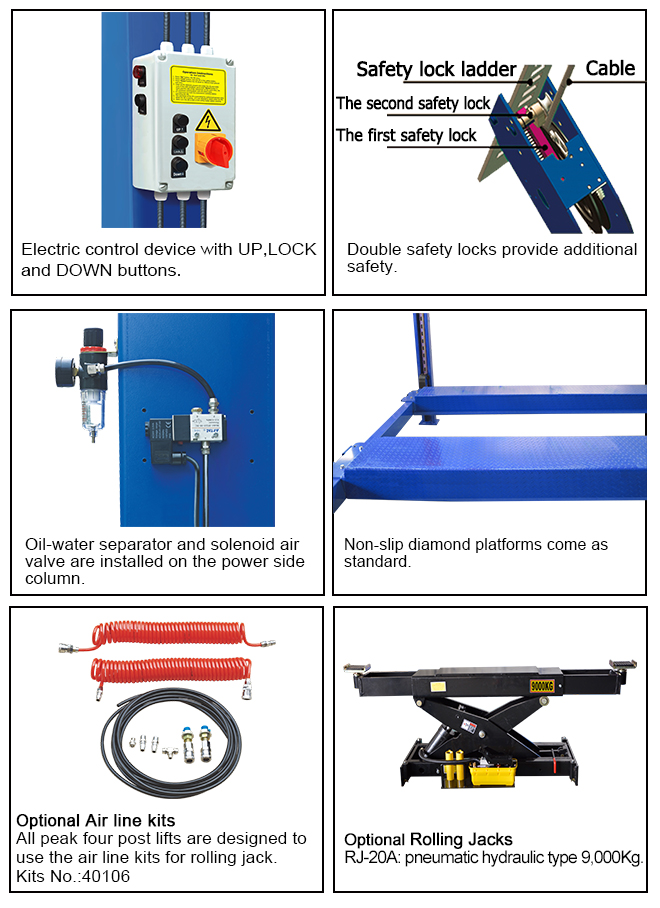

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by a second safety device.
| Model 440E | | Super Duty General Service Four Post Lift |
| Lifting Capacity | | 18000kg (40,000lbs) |
| Lifting Time | | 160s |
| Overall Length (Inc Ramps) | A | 10800mm (425 3/16") |
| Overall Length (No Ramps) | B | 9514mm (374 9/16") |
| Overall Width | C | 4100mm (161 7/8") |
| Width Between Columns | D | 3654mm (143 13/16") |
| Max.Lifting Height Max. Lock Height to top of runway | E | 1890mm (74 7/16") 1820mm (71 11/16") |
| Overall Height | F | 2332mm (91 13/16") |
| Minimum Height | G | 265mm (10 7/16") |
| Max.Underneath Height Max. Lock Underneath runway | H | 1664mm (65 1/2") 1595mm (62 3/4") |
| Drive-Thru Clearance | I | 3298mm (129 7/8") |
| Width Between Runways | J | 1246mm(49 1/16") / 1496mm(58 7/8") |
| Outside Edge of Runways | K | 2666mm(104 15/16) / 2916mm(114 13/16") |
| Gross Weight | | 4234kg (9,334lbs) |
| Motor | | 4.0 HP |

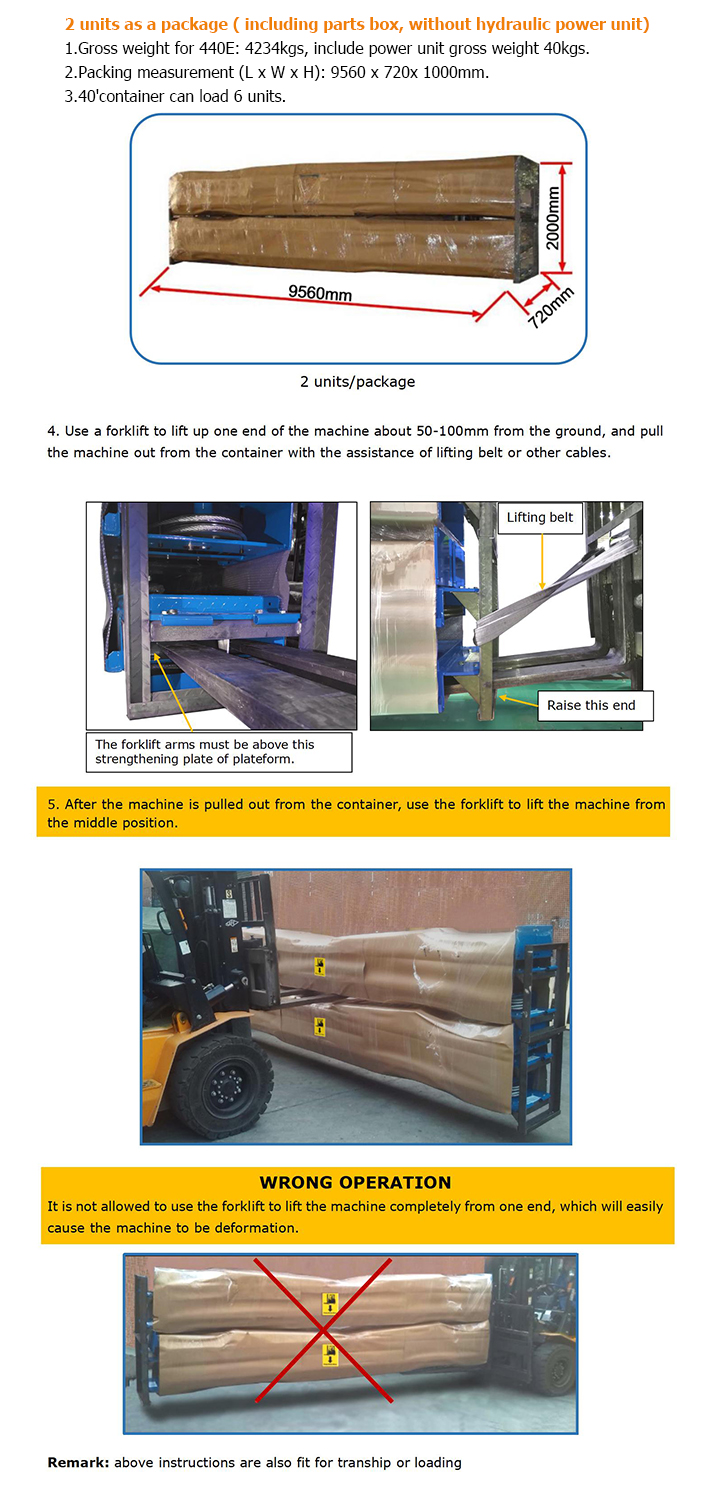

| Packing Dimension | | 9560 X 720 X1000 mm |
