SP10
Clear Floor two post lift
Armed for more duty
The direct-drived SP10 is capable of lifting heavier vehicles, boasting a capacity of up to 4500KG. As a compeititve model, it upholds PEAK's commitment of world class car lifts. Equipped with PEAK Super Asymmetric arms as standard, it offers the flexibility to load vehicles in both asymmetric and symmetric configurations. Choose SP10 to lift your business.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4500kg (10,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
•
arms allow to load different vehicles in an asymmetric or symmetric configuration;
• Overhead safety shut-off device prevents vehicle damage;
• Aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

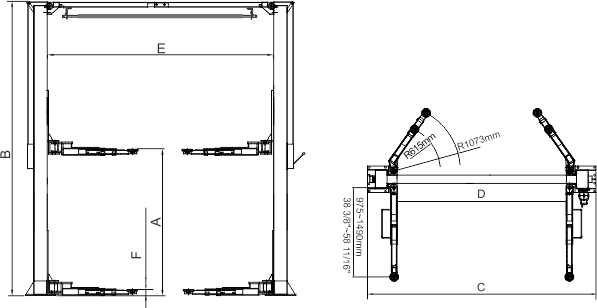

| Model SP10 | | Clearfloor Direct-drived |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1821mm (71 11/16" )~1869mm(73 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1897mm (74 11/16")~1945mm(76 9/16") |
| Max. lock height: (w/o extension adapter) | 1774mm (69 13/16" )~1822mm(71 3/4") |
| Max. lock height: (w/ extension adapter) | 1850mm (72 13/16" )~1898mm(74 3/4") |
| Overall Height | B | 3660mm (144 1/8") |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 1/4") |
| Minimum Pad Height | F | 95mm (3 3/4") |
| Gross Weight | | 675kg (1,488lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 15 Units/20'GP
40 Units/40'GP |
| Packing Dimension | | 3670 X 450 X 770 mm |
