SP10
Clear Floor two post lift
Armed for more duty
The direct-drived SP10 is capable of lifting heavier vehicles, boasting a capacity of up to 4500KG. As a compeititve model, it upholds PEAK's commitment of world class car lifts. Equipped with PEAK Super Asymmetric arms as standard, it offers the flexibility to load vehicles in both asymmetric and symmetric configurations. Choose SP10 to lift your business.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

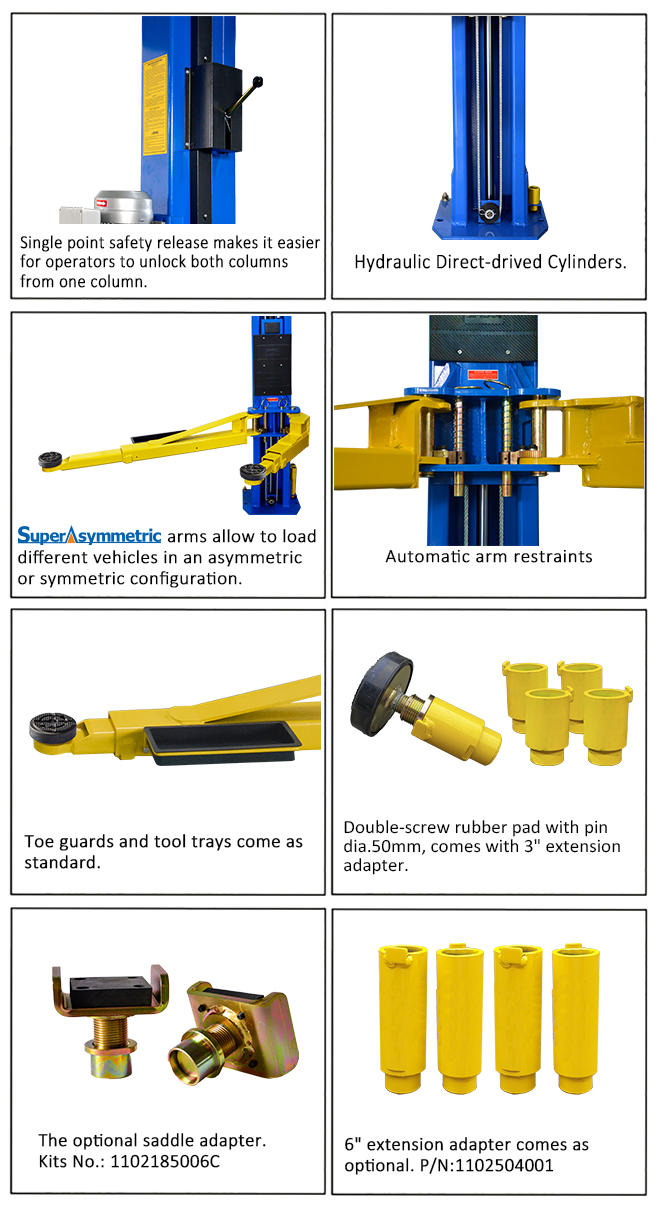

• 4500kg (10,000 lbs) Capacity.
• Dual hydraulic direct-drived cylinders, designed and made on high standard, high quality seals;
•
arms allow lifting different Vehicles in both asymmetric and symmetric configuration;
• Aero sync cables used for synchronization；
• Self-lubricating UHMW Polyethylene sliders and bronze bush;
• Single-point safety release;
• Clearfloor design, provide unobstructed floor space;
• Overhead safety shut-off device;
• Stackable rubber pads with 1.5",2.5" and 5" adapters;
• Automatic arms restraints;
• Detachable foot guard and tool tray.
| Model SP10 | | Clearfloor Direct-drived |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1815mm (71 7/16" ) |
| Max. Lifting height: (w/ extension adapter) | 2044mm (80 7/16" ) |
| Max. lock height: (w/o extension adapter) | 1768mm (69 5/8" ) |
| Max. lock height: (w/ extension adapter) | 1997mm (78 5/8" ) |
| Overall Height | B | 3660mm (144 1/8") |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 1/4") |
| Minimum Pad Height | F | 90mm (3 9/16") |
| Gross Weight | | 675kg (1,488lbs) |
| Motor | | 3.0HP |

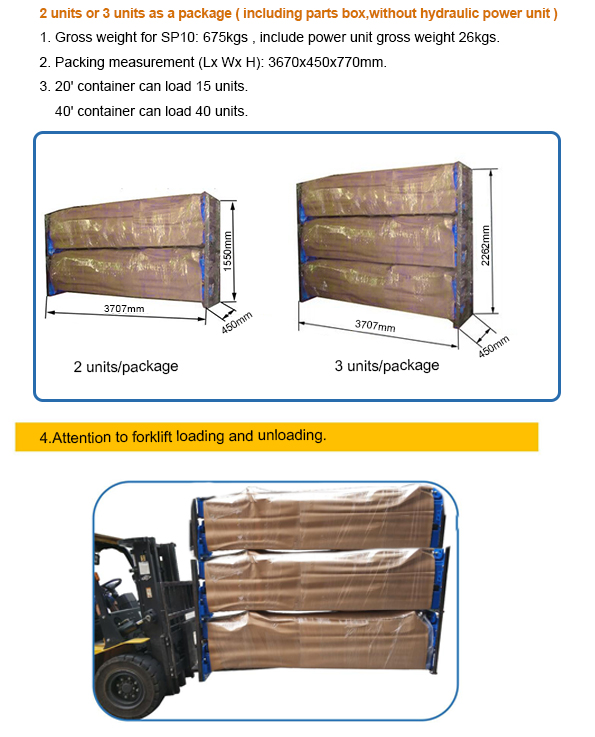

| QTY of Container | | 15 Units/20'GP |
| 40 Units/40'GP |
| Packing Dimension | | 3670 X 450 X 770 mm |
