218C
CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT
Great Lifting Giant
The PEAK 218C is exceptional in powerful performance for toughest heavy-lifting challenges. Its structure is meticulously reinforced and equipped with exceptionally long carriages to enhance stability. It includes 2 types of rubber pads as standard to accommodate varying vehicles, also features PEAK exclusive 3in1 technology, offering 1 lift with 3 height settings.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 8000kg (18,000 Lbs) Capacity.

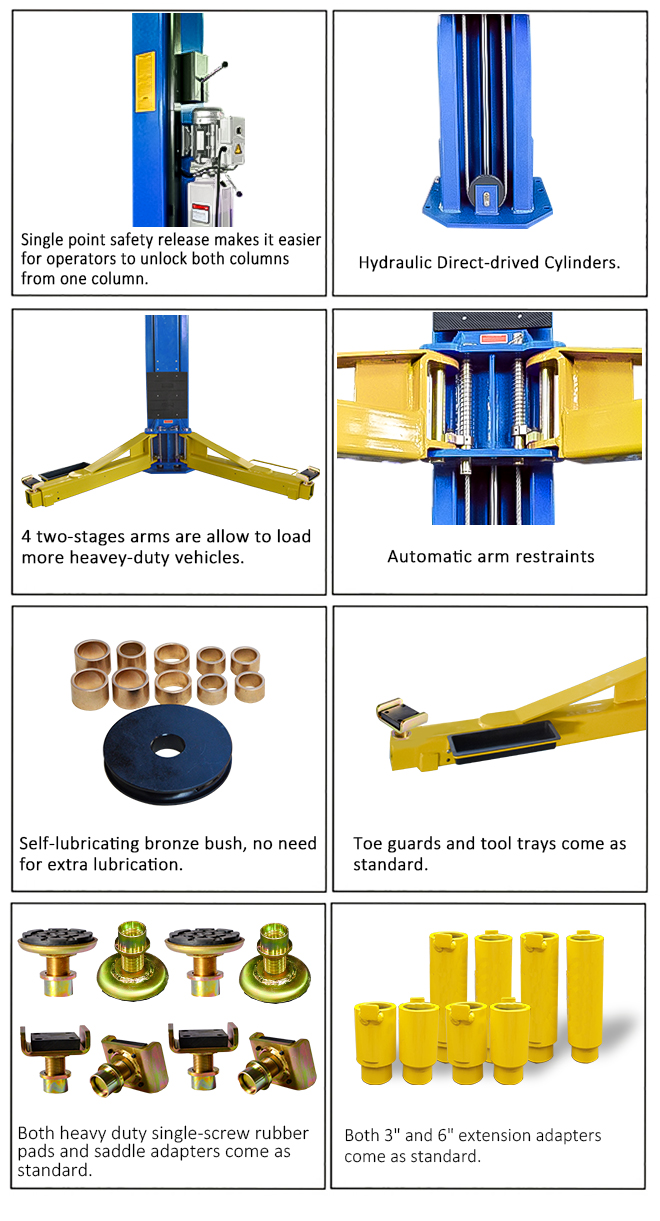

• Dual hydraulic direct-drived cylinders, designed and made on high standard, high quality seals for cylinder.
• 4 two-stage rugged arms are allow to load more heavy-duty vehicles.
• Aero sync cables used for synchronization. 1 set cables availabe for 3 heights setting.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shut-off device.
• Super high design, max. height up to 5030mm.
• Automatic arms restraints.

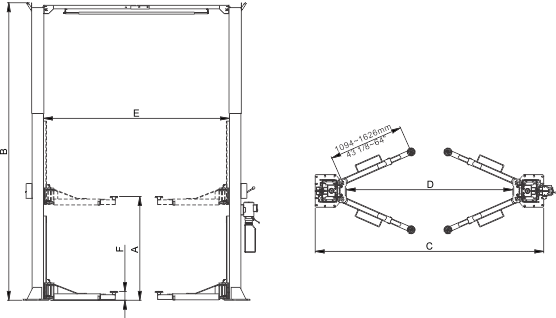

| Model 218C | | Clearfloor Direct-drived |
| Lifting Capacity | | 8000kg (18,000 lbs) |
| Lifting Time | | 84s |
| Max. Lifting height: (w/o extension adapter) | A | 1912mm (75 1/4" ) |
| Max. Lifting height: (w/ extension adapter) | 2141mm (81 1/4" ) |
| Max. lock height: (w/o extension adapter) | 1862mm (73 5/16" ) |
| Max. lock height: (w/ extension adapter) | 2091mm (82 5/16" ) |
| Overall Height:(low setting) | B | 4420mm (174") |
| Overall Height:(Medium setting) | 4725mm (186") |
| Overall Height:(High setting) | 5030mm (198") |
| Overall Width | C | 3829mm (150 3/4") |
| Drive-Thru Clearance | D | 2805mm (110 7/16") |
| Width Between Columns | E | 3137mm (123 1/2") |
| Minimum Pad Height | F | 185mm (7 1/4") |
| Gross Weight | | 1264kg (2,787lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 8 Units/20'GP 24 Units/40'GP |
| Packing Dimension | | 3430 X 570 X 950 mm |
