SX08F
Full Rise Flush-mount scissor lift
Limited space, unlimited performance
Boasts at 3500KG capacity, the SX08F enhances its structure and utilizes high quality cylinders to guarantee powerful, unlimited performance. This space-saving model is perfect for workshops with limited space,offering a clear workshop area and ample working space underneath the vehicle.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
● Lifting Capacity: 3500kg(8,000lbs)

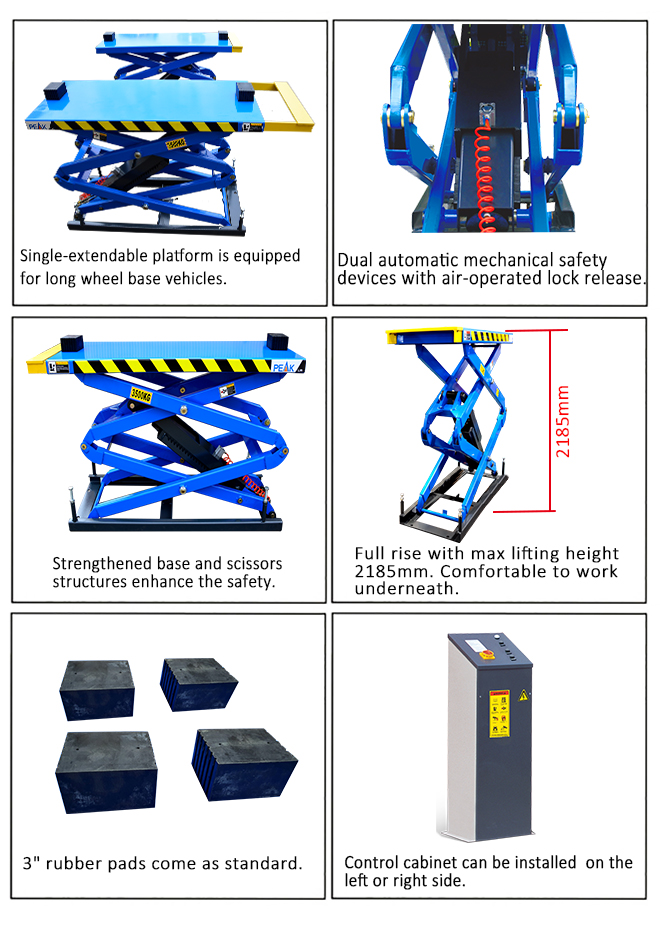

● High quality dual cylinders are designed and made to a high standard.
● Dual automatic mechanical safety devices with air-operated lock release.
● Flush-mount design provides unobstructed ground.
● Open-middle design, allows easy access.
● Full rise with max lifting height 2185mm. Comfortable to work underneath.
● Single-extendable platform is equipped for long wheel base vehicles.
| Model | | SX08F |
| Lifting Capacity | | 3500kg (8,000 lbs) |
| Lifting Time | | 35s |
| Max. Lifting Height | A | 2185mm (86") |
| Max. Lock Height | 2135mm (84") |
| Minimum Height | B | 350mm (13 3/4") |
| Runway Length | C | 1556-1750mm (61 1/4"- 68 7/8") |
| Overall Width | D | 1900mm (74 3/4") |
| Width Between Runways | E | 800mm (31 1/2") |
| Gross Weight | | 681kg (1,501 lbs) |
| Motor | | 3.0 HP |
| QTY of Container | | 20 Units/20'GP |
| Packing Dimension | | 1680 X 550 X 854mm |
