SPL-6
SINGLE POST PARKING LIFT
Unwavering Choice
The meticulously engineered SPL-6 is your unwavering choice of parking solution. Its compact design comes with reinforced construction, minimizing the occupied space, requiring no extra air source and providing the steadfast reliability for both commercial and home garage use.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• Lifting capacity: 2800KG ;
• Compact design, minimizes the occupied space;
• Available for garage with low ceilings from 2800mm (110”);

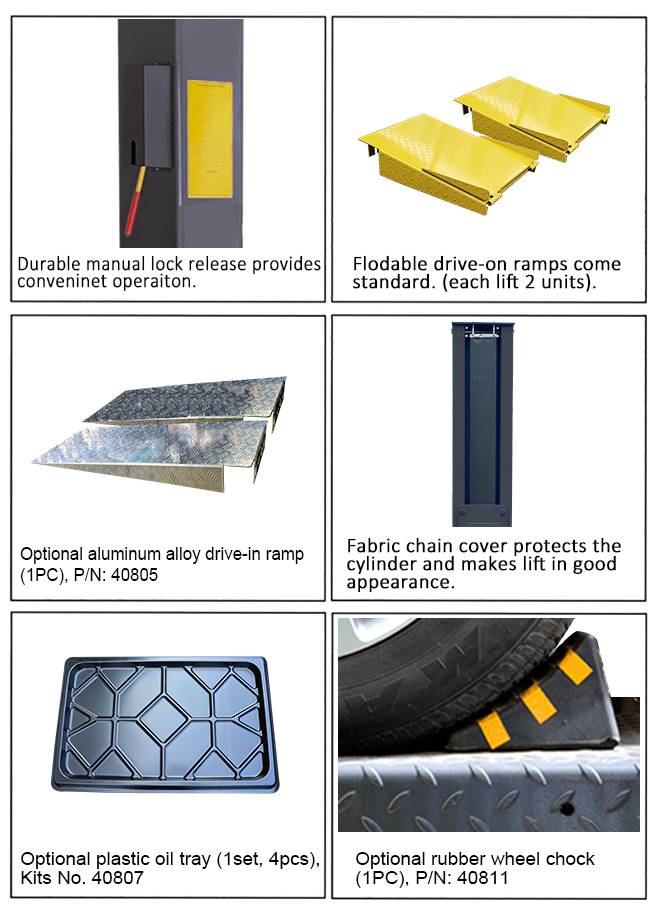

• Dual safety devices with manual lock release, no air source required.;
• Commercial grade with reinforced construction,can be used both for commercial and home garage use;
• Foldable drive-on ramps come standard.;
• Dual-direction entry design, drive-on ramps and tire stop plates interchangeable;
• Guide ramps come standard to enhance the parking underneath.

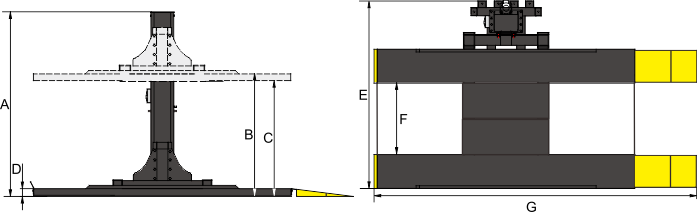

| Model SPL-6 | | Single Post Parking Lift |
| Lifting Capacity | | 2800kg |
| Lifting Time | | 39S |
| Overall Height | A | 2766mm(108 7/8") |
| Max. Lifting Height | B | 1880mm(74") |
| Max. Lock Height to top of Runway | 1783mm(70 3/16") |
| Max. Height Underneath Runway | C | 1760mm(69 1/4") |
| Max. Lock Height Underneath Runway | 1663mm(65 1/2") |
| Minimum Height | D | 160mm(6 1/4") |
| Overall Width | E | 2820mm(111") |
| Width Between Runways | F | 1077mm(42 7/16") |
| Overall Length | G | 4880mm(192 1/8") |
| Gross Weight | | 1264kg(2,787 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 12 Units/20'GP 24 Units/40'GP |
| Packing Dimension | | 3980*540*775 mm |
