591
J5H
Capacity:5,000lbs.(2,200kg)
The J5H is designed specially for the runways without rails like our parking lifts
models 407-P,407-HP,408-P,408-HP and 409-DP.
It slides on the top of runways and moved easily by hand.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
| Model | | J5H |
| Lifting Capacity | | 2200kg (5,000 lbs) |
| Lifting Time | | 50s |
| Arm Pads Reach | A | 842-1275mm (33”-53 1/2”) |
| Min.Height | B | 220mm (8 5/8") |
| Support Base Width | C | 905-1275mm (35 5/8"-50 1/4") |
| Min.rubber pad Height | D | 128mm (5") |
| Max. Lifting Height (Without adapters) | E | 355mm (14 ") |
| Max. Lifting Height (With adapters) | | 475mm (18 ") |
| Overall Width | F | 510mm (20”) |
| Pump | | Manual Pump |

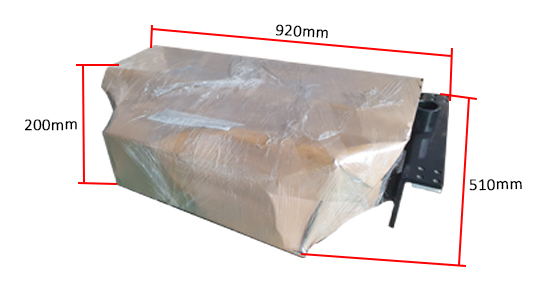

Gross weight for J5H: 114kgs
