591
J5H
Capacity:5,000lbs.(2,200kg)
The J5H is designed specially for the runways without rails like our parking lifts models 407-P,407-HP,408-P,408-HP and 409-DP.
It slides on the top of runways and moved easily by hand.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• Equipped with commercial-grade hand pump to maximize convenient for operating.
• Extendable lower sliding Assy match with plastic slider provides moving smoothly along the runsways.
• Use the 2.5'' stackable adapters can meet your requirements for reach to the various vehicles chassis height.
• Come standard with sturdy rubber pads assembly
• It features arms with adjustability for easy positioning to the recommended supporting point.
• Extendable lower sliding Assy. fitting for width between runways from 905mm(35 5/8'') to 1,275mm(50 1/4'').
• Ergonomic guardrail can be regarded as a booster handle for gliding the jack.

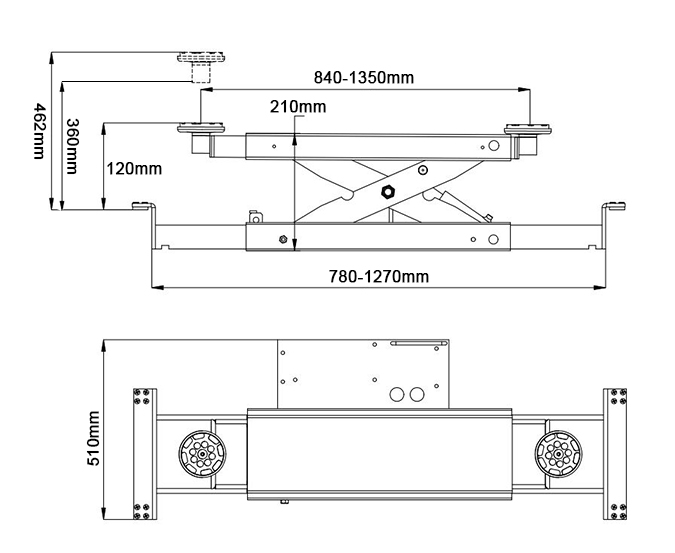

| Model | | J5H |
| Lifting Capacity | | 2200kg (5,000 lbs) |
| Lifting Time | | 50s |
| Arm Pads Reach | A | 842-1357mm (33 ”-53 7/16”) |
| Min.Height | B | 220mm (8 5/8") |
| Support Base Width | C | 905-1357mm (35 5/8"-53 7/16") |
| Min.rubber pad Height | D | 128 mm (5 3/64") |
| Max. Lifting Height (Without adapters) | E | 355mm (14 ") |
| Max. Lifting Height (With adapters) | | 419mm (16 1/2 ") |
| Overall Width | F | 510mm (20”) |
| Gross Weight Pump | | 113KG(249lbs) Manual Pump |
Gross weight for J5H: 113kgs
